40A62-X-S
Use red slider bar for more.
Electrohome Dominion: 40A62-X-S [Radio] ID = 2610017 1210x908
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1941/1942 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: 6SA7 6SK7 6J5G 6SF5 6F6G 5Y4G |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 6 AM circuit(s) |
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 115 Volt |
| Loudspeaker | Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out | |
| from Radiomuseum.org | Model: 40A62-X-S - Electrohome Dominion |

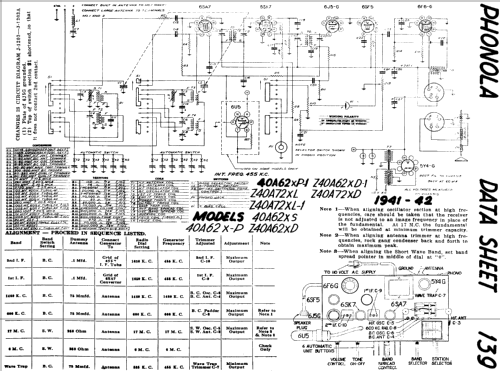

| Circuit diagram reference | Radio College of Canada |
| Mentioned in | RCC Phonola Page 139 |
Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
All listed radios etc. from Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
Here you find 863 models, 246 with images and 778 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
