- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 178272
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common); ZF/IF 456 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- from Radiomuseum.org
- Model: 862-P-1 - Electrohome Dominion

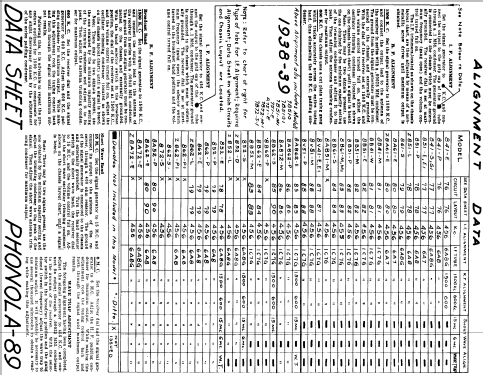

- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Phonola Pages 89
- Author
- Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
