Hochspannungsgerät 18kV 07621.93
Phywe, Physikalische Werkstätten A.G.; Göttingen
- Country
- Germany
- Manufacturer / Brand
- Phywe, Physikalische Werkstätten A.G.; Göttingen
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 247110
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- PL6574
- Main principle
- none
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Hochspannungsgerät 18kV 07621.93 - Phywe, Physikalische
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 200 x 230 x 200 mm / 7.9 x 9.1 x 7.9 inch
- Notes
Hochspannung: 2 - 18 kV stufenlos einstellbar
Kurzschlussstrom: ca. 0.25mA
Restwelligkeit: < 0.001% bei R > 109 Ω
Polung: Minuspop geerdet (liegt am Gehäuse)
Leistungsaufnahme: ca. 30VA
- Mentioned in

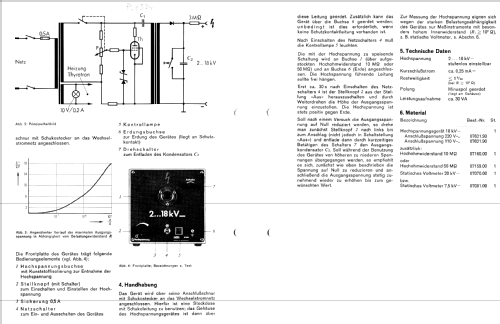

- -- Original-techn. papers.
- Author
- Model page created by Pius Steiner. See "Data change" for further contributors.
