• Year
  • 1970 ??
  • Category
  • Teaching aids-material
  • Radiomuseum.org ID
  • 222955

 Technical Specifications

  • Number of Transistors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

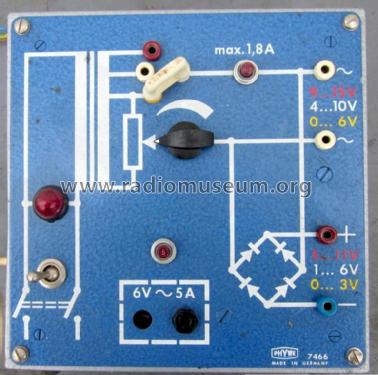

  • Model: Netzanschlussgerät 7466 - Phywe, Physikalische
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 200 x 200 x 100 mm / 7.9 x 7.9 x 3.9 inch
  • Notes
  • Netzanschlussgerät Phywe 7466

    Ausgangsspannungen:
    0...6 VAC / 4...10 VAC / 9...15 VAC umsteckbar, Imax: 1,8 A
    0...3 VDC / 1...6 VDC / 5...11 VDC umsteckbar, Imax: 1,8 A
    6 VAC Festspannung, Imax: 5 A

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
