• Country
• Germany

• Manufacturer / Brand
• Phywe, Physikalische Werkstätten A.G.; Göttingen

• Year
• 1954 ??

• Category
• Teaching aids-material

• Radiomuseum.org ID
• 164391

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• Selengleichrichter

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

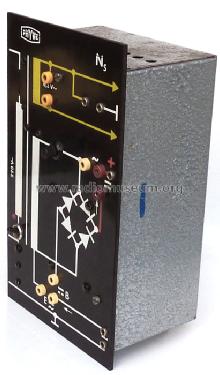

• Model: Netzteilplatte mit Trockengleichrichter NS - Phywe, Physikalische

• Dimensions (WHD)
• 160 x 280 x 90 mm / 6.3 x 11 x 3.5 inch

• Notes
• Modul zum Funk-Lehrgerät.

• Net weight (2.2 lb = 1 kg)
• 2.3 kg / 5 lb 1.1 oz (5.066 lb)

• Author
• Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
