- Country
- Great Britain (UK)
- Manufacturer / Brand
- Pilot Radio Ltd.; London
- Year
- 1954
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 102406
From guest: Ben Baarsma, Drachten, Holland
From guest: Ben Baarsma, Drachten, Holland
From guest: Ben Baarsma, Drachten, Holland
From guest: Ben Baarsma, Drachten, Holland
Click on the schematic thumbnail to request the schematic as a free document.

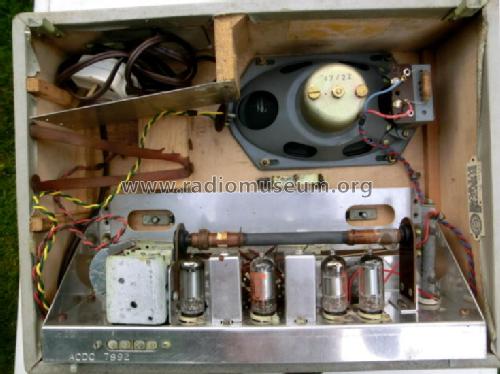

- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage

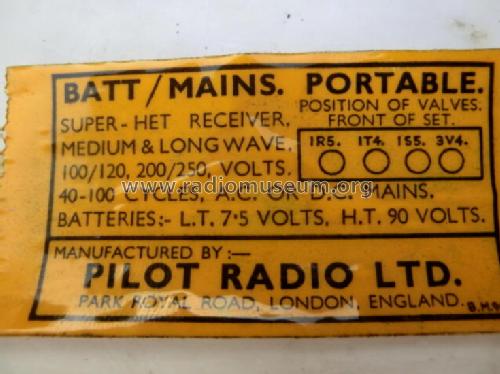

- Line / Batteries (any type) / 110; 200-250 / 7.5 & 90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
- from Radiomuseum.org
- Model: BM90 - Pilot Radio Ltd.; London
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 13.5 x 5 x 10.5 inch / 343 x 127 x 267 mm
- Notes

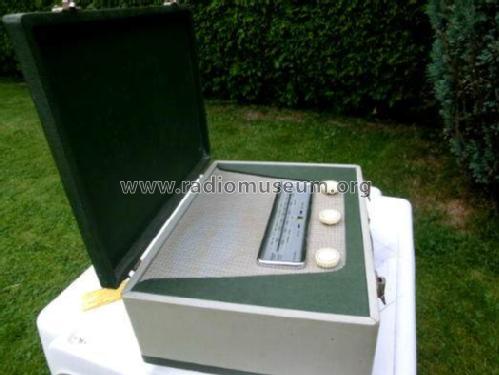

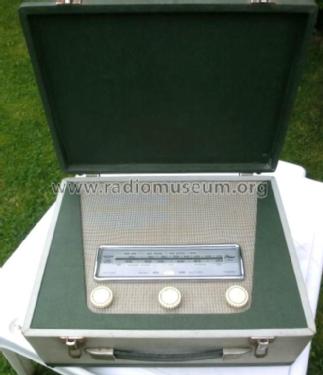

- Portable battery and AC/DC mains attache case style radio. Price including tax £17.50 (decimal). Metal rectifier.
- Net weight (2.2 lb = 1 kg)
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Price in first year of sale
- 14.00 GBP
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers. (Attache Radios. By Mark Johnson)
- Literature/Schematics (1)
- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1163)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
