2-Way Speaker SQ-800-LR

2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1817726) Speaker-P 2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1817722) Speaker-P
2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1817725) Speaker-P 2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1817724) Speaker-P
2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1818084) Speaker-P 2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1818085) Speaker-P
2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1818090) Speaker-P 2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1818093) Speaker-P
Use red slider bar for more.
2-Way Speaker SQ-800-LR; Pioneer Corporation; (ID = 1817726) Speaker-P
Pioneer Corporation;: 2-Way Speaker SQ-800-LR [Speaker-P] ID = 1817726 1400x788
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2-Way Speaker SQ-800-LR, Pioneer Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1998 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out 20 W (max.)
from Radiomuseum.org Model: 2-Way Speaker SQ-800-LR - Pioneer Corporation; Tokyo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 130 x 234 x 234 mm / 5.1 x 9.2 x 9.2 inch
Notes

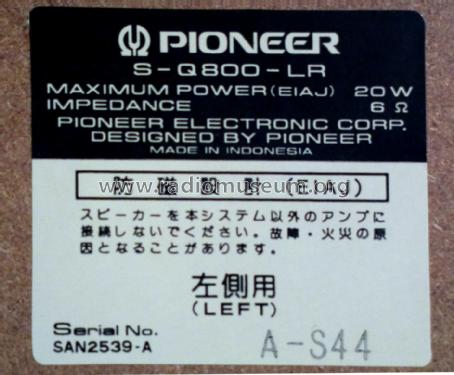

20 W max. power according to EIAJ / 6 Ohm.

Designed by Pioneer, made in Indonesia.

See also MD/CD Receiver XR-Q900.

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
