• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 2000 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 307800

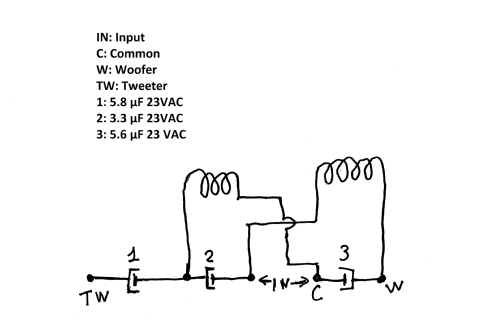

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: 2 Way Speaker System S-X330 - Pioneer Corporation; Tokyo

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 260 x 400 x 250 mm / 10.2 x 15.7 x 9.8 inch

• Notes
• • Woofer: 20 cm. Pioneer E20EC75-52E
  • Tweeter: 2,5 cm. Pioneer ADD64-55F
  • Frequency range: 40 ÷ 40kHz.
  • Music power: 90 W.
  • Impedance on the label: 8 Ω. On the woofer it's indicated 6.3 Ω and on the tweeter 7.6 Ω.

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
