• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1986

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 274045

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Power out
• 40 W (120 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 3-Way Speaker System CS-G301WAII - Pioneer Corporation; Tokyo

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 14.9375 x 26.5 x 13 inch / 379 x 673 x 330 mm

• Notes

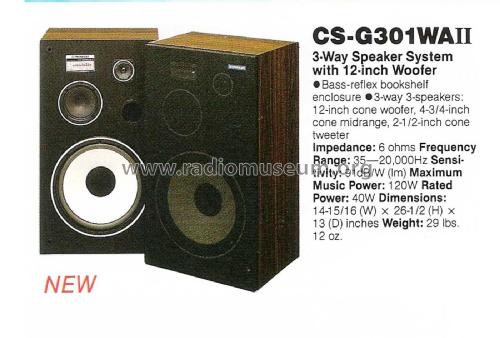

• Pioneer 3-Way 3-Speaker System Model CS-G301WAII (2).
  Bass-reflex bookshelf enclosure
  Frequency Range 35 - 20000Hz, 6 Ohms, 91,5dB/W/m
  Max. Music Power 120 Watts
  Rated Power 40 Watts
  CrossOver: 3500Hz, 7000Hz
  1x Woofer 12" cone
  1x Midrange 4,75" cone
  1x Tweeter 2,5" cone
  Detachable Grille

• Net weight (2.2 lb = 1 kg)
• 29 lb 12 oz (29.75 lb) / 13.507 kg

• Mentioned in
• -- Original prospect or advert (Pioneer Katalog - Audio Video Lineup 1986)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
