AM/FM Stereo Receiver SX-702RDS

AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 1927190) Radio

AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 1927191) Radio
AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484245) Radio AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484246) Radio
AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484247) Radio AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484255) Radio
AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484256) Radio AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484257) Radio
AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 1927186) Radio AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 1927187) Radio
Use red slider bar for more.
AM/FM Stereo Receiver SX-702RDS; Pioneer Corporation; (ID = 2484245) Radio
Pioneer Corporation;: AM/FM Stereo Receiver SX-702RDS [Radio] ID = 2484245 1024x360
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Receiver SX-702RDS, Pioneer Corporation; Tokyo:
Sold on archiwum.allegro.pl item_8233836120

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - This model requires external speaker(s).
Power out 120 W (undistorted)
from Radiomuseum.org Model: AM/FM Stereo Receiver SX-702RDS - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 125 x 350 mm / 16.5 x 4.9 x 13.8 inch

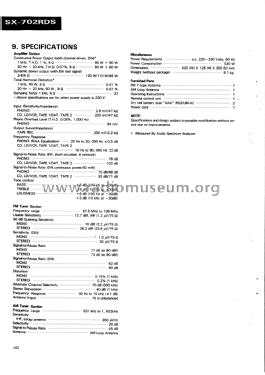

Notes

Pioneer AM/FM Stereo Receiver Model SX-702RDS.
Tuning range:
FM 87,5 - 108MHz
MW 531 - 1602 kHz
Preset memory classes 1-4 (each 10 presets, total of 40 stations)
Power output: 60 watts per channel into 8Ω (stereo), 20-20000Hz
Frequency response: 10Hz to 90kHz
Total harmonic distortion: 0.07%
Damping factor: 33
Input sensitivity: 2.8mV (MM), 200mV (line)
Inputs: Phono, CD, LD/VCR, Tape1/DAT, Tape2
Signal to noise ratio: 78dB (MM), 102dB (line)
Output: 200mV (line)
Outputs: Tape REC, Speakers A, B, Phones Jack
Tone Controls:
Bass +/-8dB (100Hz at -30dB)
Treble +/-8dB (10000Hz at -30dB)
Loudness +6dB (100Hz at -30dB), +3dB (10000Hz at -30dB)

Accessories: remote control

Suffix:
HEWZ - 220-230VAC, 240VAC (Switchable)
HE - 220-230VAC, 240VAC (Switchable)
Power Consumption max. 530 Watts

See also:
Pioneer AM/FM Stereo Receiver SX-702RDS-G


Net weight (2.2 lb = 1 kg) 8.1 kg / 17 lb 13.5 oz (17.841 lb)
Mentioned in -- Original prospect or advert (Pioneer Katalog - Audio, Video Guide)
