AM/FM Tuner AFT-11

AM/FM Tuner AFT-11; Pioneer Corporation; (ID = 2369559) Radio
AM/FM Tuner AFT-11; Pioneer Corporation; (ID = 1410161) Radio AM/FM Tuner AFT-11; Pioneer Corporation; (ID = 2369646) Radio
AM/FM Tuner AFT-11; Pioneer Corporation; (ID = 2369650) Radio
Use red slider bar for more.
AM/FM Tuner AFT-11; Pioneer Corporation; (ID = 1410161) Radio
Pioneer Corporation;: AM/FM Tuner AFT-11 [Radio] ID = 1410161 608x288
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Tuner AFT-11, Pioneer Corporation; Tokyo:
aus ebay, #380572162226, mit Erlaubnis des Verkäufers vdmradios

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1960 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6AQ8 6AQ8 6BA6 6BA6 6M-E5 6M-E5 6AU6 6BE6 6BA6 6AQ8 6X4
Semiconductors (the count is only for transistors) 1NA9 1NA9 1NA9
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Tuner AFT-11 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 15 x 5.5 x 10 inch / 381 x 140 x 254 mm
Notes

Tuner with separate AM and FM sections.

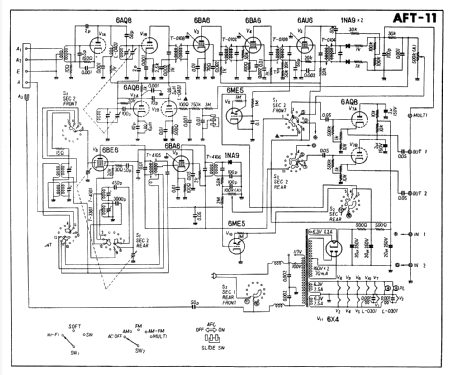

Source of data -- Schematic
Mentioned in -- Original prospect or advert (Advert by Fukuin Electric in Audio Magazine March 1960)

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
