Automatic Return Turntable PL-514 black

Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1634547) R-Player Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1634548) R-Player

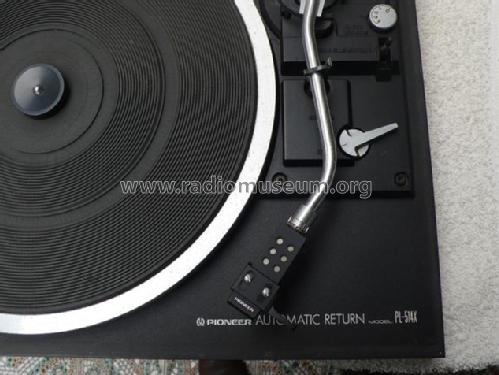

Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1635980) R-Player Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1643634) R-Player
Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1648480) R-Player Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1648481) R-Player
Use red slider bar for more.
Automatic Return Turntable PL-514; Pioneer Corporation; (ID = 1634547) R-Player
Pioneer Corporation;: Automatic Return Turntable PL-514 [R-Player] ID = 1634547 634x476
Select picture or schematic to display from thumbnails on the right and click for download.
For model Automatic Return Turntable PL-514 black, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1978/1979 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Automatic Return Turntable PL-514 [black] - Pioneer Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 140 x 365 mm / 17.3 x 5.5 x 14.4 inch
Notes

Pioneer 2-Speed (33 & 45 rpm) belt driven Auto-Return Stereo Turntable Model PL-514.
Platter: 320 mm aluminum alloy die-cast
Anti-skating force control, Cueing Device, Detachable Dust Cover.

Meaning of suffixes:

  • Q - 110-130V, 220-240V; Cartridge Pioneer PC-110/II
  • QT - 110 - 130V, 220 - 240V; no cartridge
  • HG - 220-240V; Cartridge Pioneer PC-110/II
  • HGT - 220-240V; no cartridge
Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Price in first year of sale 25'000.00 pte
Source of data -- Original prospect or advert

Model page created by Manuel Albano Neves. See "Data change" for further contributors.
