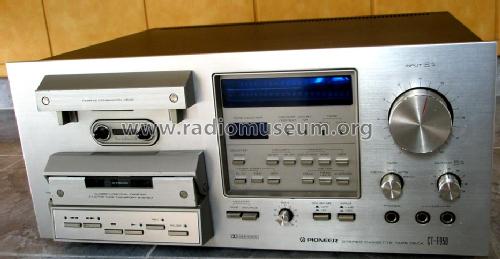

Cassette Tape Deck CT-F950

Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 865647) R-Player

Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 865648) R-Player

Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 865649) R-Player

Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 866172) R-Player
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863879) R-Player Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863880) R-Player
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863881) R-Player Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863882) R-Player
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863883) R-Player Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863884) R-Player
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863885) R-Player Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 1529508) R-Player
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 1529511) R-Player Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 1529513) R-Player
Use red slider bar for more.
Cassette Tape Deck CT-F950; Pioneer Corporation; (ID = 863879) R-Player
Pioneer Corporation;: Cassette Tape Deck CT-F950 [R-Player] ID = 863879 933x485

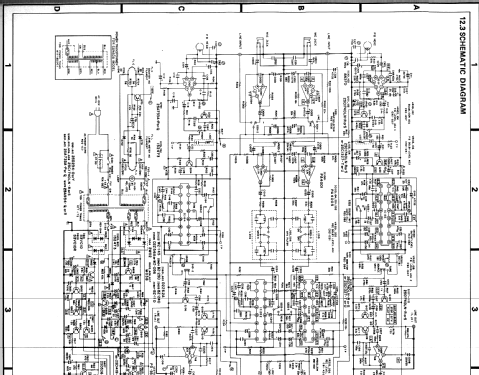

Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Tape Deck CT-F950, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1979/1980 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 76:
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Cassette Tape Deck CT-F950 - Pioneer Corporation; Tokyo
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 117 x 365 mm / 16.5 x 4.6 x 14.4 inch
Notes Pioneer CT-F950 is a three head cassette tape recorder.
Dolby NR System, microphone input, headphones output.
Diodos 84, ICs 13, Photo interrupter 1.
Net weight (2.2 lb = 1 kg) 10.1 kg / 22 lb 3.9 oz (22.247 lb)
Price in first year of sale 600.00 $
Source of data - - Manufacturers Literature

Model page created by Bernardo Diaz. See "Data change" for further contributors.
