Cassette Tuner Combination KEH-3400SDK

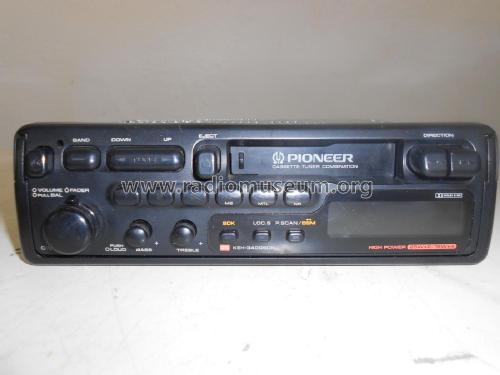

Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357805) Car Radio Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357804) Car Radio
Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357806) Car Radio Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357809) Car Radio
Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357807) Car Radio Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357808) Car Radio
Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357810) Car Radio
Use red slider bar for more.
Cassette Tuner Combination KEH-3400SDK; Pioneer Corporation; (ID = 2357805) Car Radio
Pioneer Corporation;: Cassette Tuner Combination KEH-3400SDK [Car Radio] ID = 2357805 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Tuner Combination KEH-3400SDK, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1985 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player; Hi-Fi equipment
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 60 W (unknown quality)
from Radiomuseum.org Model: Cassette Tuner Combination KEH-3400SDK - Pioneer Corporation; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 172 x 48 x 155 mm / 6.8 x 1.9 x 6.1 inch
Notes

negativo a massa - potenza di uscita: 25 W x 2 - 15W x 4 - impedenza altoparlanti 4/8 Ω - frequency range: AM 531/1602 kHz - FM 87.5/108 MHz - plancia estraibile - maniglia di trasporto - controllo volume/bilanciamento/fader/toni alti/toni bassi/loudness - tasti SDK-Loc.S.-P.Scan/BSM - 12 stazioni presintonizzabili - commutatore band/up/down - tasti ff.ww./rew/eject - dolby B NR - tasto direction reverse - ARC.

Made in Japan.

Net weight (2.2 lb = 1 kg) 1.950 kg / 4 lb 4.7 oz (4.295 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
