Compact Disc Player P-D70

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1984
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 290531

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player P-D70 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 98 x 300 mm / 16.5 x 3.9 x 11.8 inch
  • Notes

  • Pioneer Frontloading Single Compact Disc Player Model P-D70.
    Disc format: CD
    Digital converter: CX20017
    CD Mechanism: VWY-061 / VWY-063
    Frequency response: 5Hz to 20kHz
    Dynamic range: 95dB
    Signal to Noise Ratio: 95dB
    Channel separation: 90dB
    Total harmonic distortion: 0.004%
    Line output: 2V
    Power Consumption 38 Watts

    Model Pioneer P-D70 comes in 5 Versions:
    HEM - European Model - 220VAC, 240VAC switchable
    HB - UK-Model - 220VAC, 240VAC switchable
    KU - U.S.A.- Model120VAC
    S - General Export Model - 110/120/220/240VAC switchable
    S/G - U.S.A. Military Model - 110/120/220/240VAC switchable



  • Net weight (2.2 lb = 1 kg)
  • 7.5 kg / 16 lb 8.3 oz (16.52 lb)
  • Mentioned in

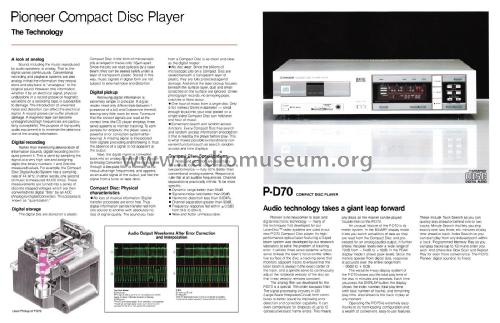

  • - - Manufacturers Literature (Service Manual Order No. VRT-024-0)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
