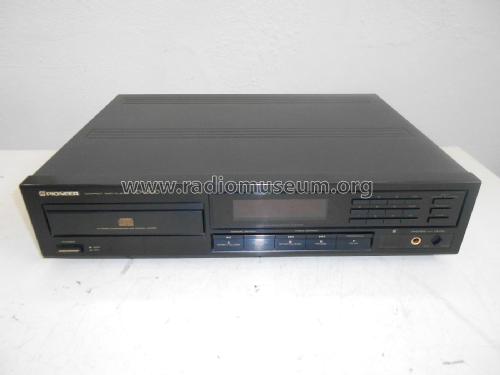

Compact Disc Player PD-5300

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 308608

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-5300 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 325 x 98 mm / 16.5 x 12.8 x 3.9 inch
  • Notes

  • A hi-fi stereo compact disc player with infrared remote control. Dual D/A converter with an 8 times oversampling 18 bit digital filter. RCA phono Line Output sockets, jack for headphones with volume control.

    Functions
    Play
    Pause
    Manual search
    Programmed playback (up to 24 tracks) Track search
    Track search
    Index search (remote control)
    Programmed repeat
    Pause program
    Direct track selection
    All track repeat
    Add-on program
    Computer allocated program editing
    Auto program editing
    Random play
    Programmed random play
    Timer start

    Specification
    Frequency response 4Hz-20kHz (± 0.5dB) (EIAJ)
    S/N 104dB or more (EIAJ)
    Dynamic range 95dB or more (EIAJ)
    Channel separation 98dB or more (EIAJ)
    Total harmonic distortion 0.005% or less (EIAJ)
    Output voltage 2.0V
    Wow and flutter Limit of measurement
    Number of channels 2 channels (stereo)

    Versions/Power requirements
    European models            AC 220V 50/60Hz
    U.K., Australian models   AC 240V 50/60Hz
    Other models          AC 110/120-127/220/240V 50/60Hz (switchable)

    Power consumption:  13W

    tasti open/close - random/play - stop/clear - pause/play/program/ff.ww./rew - manual search - track search -edit/auto/compu - repeat/time - 1/20 tracks
    presa per cuffia con regolazione volume audio
    disc format: CD
    digital converter: PCM56P-L
    CD mechanism: PWY1010
    accessories: remote control
    consumo 13 watt.

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Mentioned in
  • -- Original prospect or advert (1989 Pioneer Hi-Fi Components catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual PD-5300 PD-5300-S dated Apr 1989)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
