Compact Disc Player PD-S701

Compact Disc Player PD-S701; Pioneer Corporation; (ID = 2523468) R-Player Compact Disc Player PD-S701; Pioneer Corporation; (ID = 2523472) R-Player
Compact Disc Player PD-S701; Pioneer Corporation; (ID = 2523470) R-Player Compact Disc Player PD-S701; Pioneer Corporation; (ID = 1232970) R-Player
Use red slider bar for more.
Compact Disc Player PD-S701; Pioneer Corporation; (ID = 2523468) R-Player
Pioneer Corporation;: Compact Disc Player PD-S701 [R-Player] ID = 2523468 1200x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Disc Player PD-S701, Pioneer Corporation; Tokyo:
Ebay.de auction item_324130894354 seller bertramb2

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1992 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 120; 110; 120-127; 220; 240; 220-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Compact Disc Player PD-S701 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 440 x 130 x 276 mm / 17.3 x 5.1 x 10.9 inch
Notes

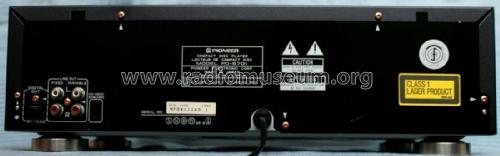

A hi-fi stereo compact disc player housed in a black metal case. Full-function SR remote control with 20-key numeric keypad (CU-PD058) and power on/off. Anti-resonance and vibration designs with honeycomb chassis and large insulators, 1-bit DLC (Direct Linear Conversion) with High-Speed & High-Density Pulseflow D/A Converter, Stable platter mechanism. RCA phono sockets for Fixed and Variable Line Output, jacks for Optical Digital Output and CD-Deck Synchro, Headphone jack (with motor driven volume control), and on the Canadian model jacks for Control input/output.

Functions

  • Display off switch
  • CD-Deck Synchro
  • Compu-PGM Edit: Auto program editing and Time fade editing
  • Digital level control
  • Hi-Lite Scan
  • Peak search
  • Memory hold (programmed tracks and level)
  • Reserve operation: For pre-programmed play at a touch
  • "Delete" play
  • 7-mode repeat: 1 TRACK, ALL, PROGRAM, RANDOM, PROGRAM RANDOM, DELETE and HI-LITE SCAN
  • Direct track access by 20 numeric keys
  • Random programmed play of 24 tracks
  • Time location
  • 3-mode random play (NORMAL/PROGRAM/DELETE)
  • 20-track music calendar
  • Timer play (timer optional)
Specification
Frequency response 2Hz - 20kHz
S/N ratio 108 dB or more (EIAJ)
Dynamic range96 dB or more (EIAJ)
Harmonic distortion0.0026% or less (EIAJ)
Output voltage2.0 V
Wow and flutterLimit of measurement
Channels2-channel (stereo)

Versions/Power requirements

KCCanadaAC120V Only
HEMEuropean continentAC 220-230V, 240V (internally switchable)
HBUnited KingdomAC 220-230V, 240V (internally switchable)
HPWAustraliaAC 220-230V, 240V (internally switchable)
SDOthersAC 110V, 120-127V, 220V, 240V (with voltage selector)

Power consumption:  16 Watts (Canada 14 Watts)

Similar to the Pioneer PD-S701-G Compact Disc Player (Europe only model) which is housed in a champagne gold case, and to the Pioneer PD-32 Elite Compact Disc Player (US only model).

Net weight (2.2 lb = 1 kg) 4.2 kg / 9 lb 4 oz (9.251 lb)
Source of data -- Original prospect or advert
Mentioned in -- Original prospect or advert (1992 Pioneer Hi-Fi Components catalogue)
Literature/Schematics (1) - - Manufacturers Literature (Service manual PD-32 PD-S701 PD-S701-G dated Apr 1992)

Model page created by Achim Eisenhuth. See "Data change" for further contributors.
