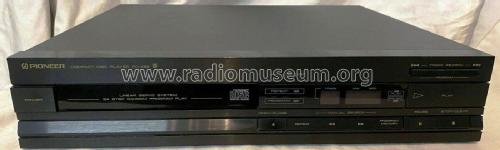

Compact Disc Player PD-X88

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 332523

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player PD-X88 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 75 x 315 mm / 14.2 x 3 x 12.4 inch
  • Notes

  • A hi-fi stereo compact disc player with system remote control. RCA phono line output sockets and terminals for system remote control.

    Features
    • Random-access programming for up to 24 tracks
    • Repeat playing of all tracks or programmed tracks
    • New Disc Stabilizer for accurate tracking
    • Low Centre-of-Gravity pick-up and Linear Servo System for accurate tracking
    • Six-digit LED display for time and mode (elapsed time, total time, total tracks)
    • Three speed manual search
    • Slim design

    Specification

    Frequency response 4Hz-20kHz (±1dB)
    Signal-to-noise ratio 92dB or more
    Dynamic range 92dB or more
    Total harmonic distortion 0.01% or less
    Output voltage 2.0V ± 0.5V
    Wow and flutter Limit of measurement

    Versions/power requirements:
    European models         220V AC 50/60Hz
    UK/Australian models   240V AC 50/60Hz
    US/Canadian models   120V AC 60Hz
    Other models               110/120-127/220/240V AC 50/60Hz switchable

    Power consumption:  18 watts

  • Net weight (2.2 lb = 1 kg)
  • 4 kg / 8 lb 13 oz (8.811 lb)
  • Mentioned in
  • - - Manufacturers Literature (Service Manual Pioneer PD-X88)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
