• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1990 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307292

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

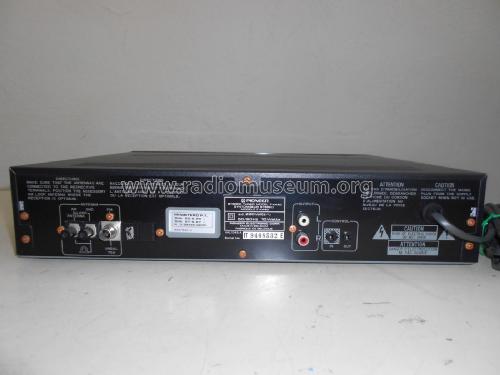

• Model: FM AM Digital Synthesizer Tuner F-X440L - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 75 x 333 mm / 14.2 x 3 x 13.1 inch

• Notes

• Stereo radio tuner for integration into Pioneer A-X440 Hi Fi system, linked into amps IR remote control system.

  Frequency coverage; FM 87.5 - 108 MHz, MW 531 - 1602 kHz, LW 153 - 281 kHz.

  CCTS & Silent Servo (computer controlled tuning system) - 24 stazioni presintonizzabili - tasto Memory - consumo 10 watt.

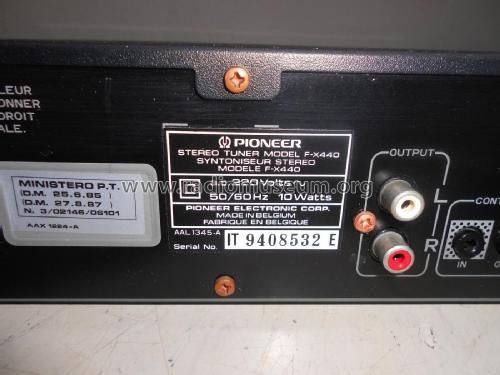

  Made in Belgium.

• Net weight (2.2 lb = 1 kg)
• 2.850 kg / 6 lb 4.4 oz (6.278 lb)

User instruction booklet for Pioneer F-X440 Stereo AM/FM Tuner

2094 KB

• Documents regarding this model

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
