• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1969

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142722

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 6BA6 6BA6 6BA6 6BE6 6E5 6CG7 6CA4 6AQ8 6AQ8 12AX7 6BM8 6BM8

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115/230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 10 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

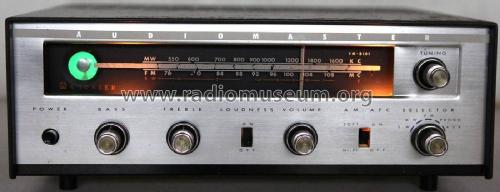

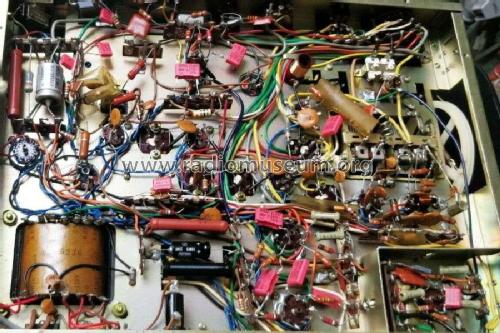

• Model: Audiomaster FM-B101 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 360 x 140 x 340 mm / 14.2 x 5.5 x 13.4 inch

• Notes

• A 3 band AM/FM mono receiver with power output of 10 watts, 12 watts IHF music power, Frequency response 30-20,000Hz, THD < 1%. Inputs for ceramic and magnetic phono and Aux.

  Receiver mit 10 Watt, 12 Watt Musik (IHF, norm., total).

• Source of data
• -- Original prospect or advert

• Mentioned in
• - - Manufacturers Literature (Pioneer Hi-Fi Stereo catalogue)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
