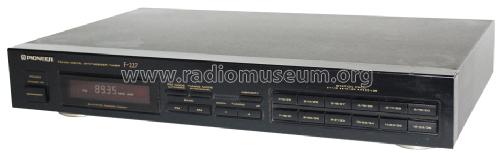

FM/AM Digital Synthesizer Tuner F-227

FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527199) Radio FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1239459) Radio
FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1193388) Radio FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1239460) Radio
FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527202) Radio FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527204) Radio
FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527207) Radio FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527208) Radio
FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527209) Radio FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527212) Radio
Use red slider bar for more.
FM/AM Digital Synthesizer Tuner F-227; Pioneer Corporation; (ID = 1527199) Radio
Pioneer Corporation;: FM/AM Digital Synthesizer Tuner F-227 [Radio] ID = 1527199 933x331
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Digital Synthesizer Tuner F-227, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1990 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment

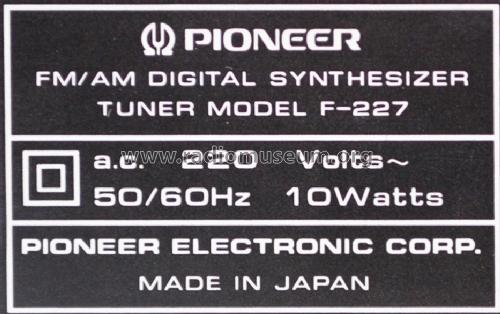

Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM/AM Digital Synthesizer Tuner F-227 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 70 x 274 mm / 16.5 x 2.8 x 10.8 inch
Notes Pioneer FM/AM Digital Synthesizer Tuner F-227;
FM: 87,5-108 MHz. MW: 531-1602 kHz. 36 station presets.
Net weight (2.2 lb = 1 kg) 2.6 kg / 5 lb 11.6 oz (5.727 lb)
Source of data - - Manufacturers Literature
