• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1982 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 230891

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 9 W (13 W max.)

• Material
• Metal case

• from Radiomuseum.org

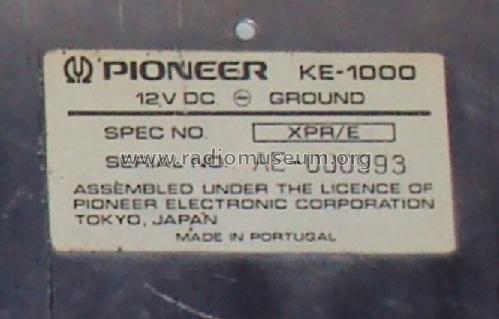

• Model: KE-1000 - Pioneer Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 50 x 208 mm / 7.1 x 2 x 8.2 inch

• Notes

• Radio Analogico

  AM x 5 / FM x 10 memorias

  Cassette auto stop.

• Mentioned in

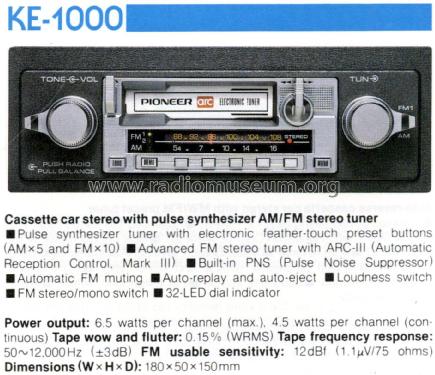

• -- Original prospect or advert (Pioneer Car Stereo Dec.'82)

• Author
• Model page created by João-Afonso Santos. See "Data change" for further contributors.
