Cassette Car Stereo KP-575

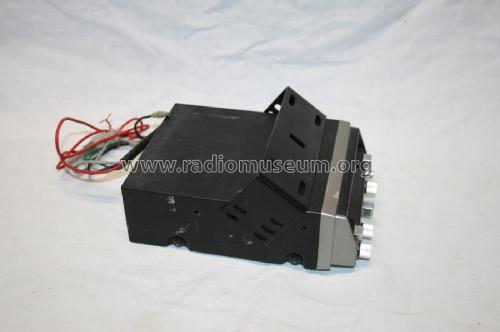

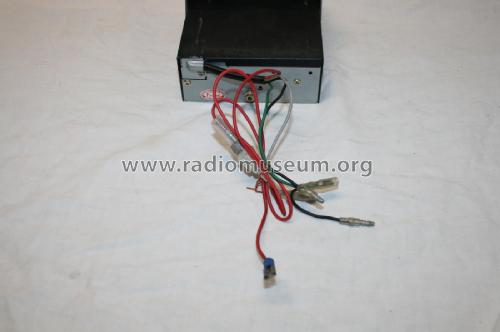

Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251251) R-Player Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251252) R-Player
Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251253) R-Player Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251254) R-Player
Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251255) R-Player
Use red slider bar for more.

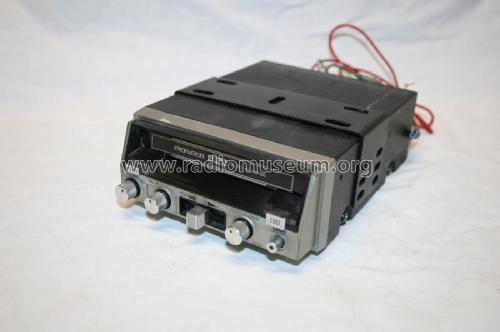

Cassette Car Stereo KP-575; Pioneer Corporation; (ID = 2251251) R-Player
Pioneer Corporation;: Cassette Car Stereo KP-575 [R-Player] ID = 2251251 1400x931
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Car Stereo KP-575, Pioneer Corporation; Tokyo:
eigenes Bild, eigenes Gerät.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1980 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 13.8 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (12 W max.)
from Radiomuseum.org Model: Cassette Car Stereo KP-575 - Pioneer Corporation; Tokyo
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 122 x 50 x 162 mm / 4.8 x 2 x 6.4 inch
Notes

Cassette Car Stereo with Auto-Reverse for C30 and C90 cassettes. Adjustable volume, balance, tone. Loudness button. Under-dash mounting.

Grounding: negative type
Power output: 2 x 6 W (max), 2 x 5 W (continuous)
Load impedance: 4 Ohms (2 - 8 Ohms)
Tape wow and flutter: < than 0.25 % (RMS)
S-N ratio: > 50 dB
Frequency response: 30 - 15000 Hz

Cassette mechanism: X-103SM.

Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Mentioned in -- Original-techn. papers.

Model page created by Andreas Sommerer. See "Data change" for further contributors.
