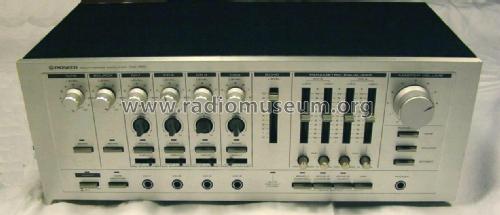

Multi-Mixing Amplifier MA-100

Pioneer Corporation; Tokyo

Daten
Forum
Bilder
Sammlungen

  • Jahr
  • 1983–1985
  • Kategorie
  • NF-(Niederfrequenz-) Verstärker oder -Mixer
  • Radiomuseum.org ID
  • 252061

 Technische Daten

  • Anzahl Transistoren
  • Halbleiter vorhanden.
  • Halbleiter
  • Hauptprinzip
  • NF-Verstärkung
  • Wellenbereiche
  • - ohne
  • Spezialitäten
  • Hi-Fi-Gerät
  • Betriebsart / Volt
  • Wechselstromspeisung / 120; 110-120; 220-240 Volt
  • Lautsprecher
  • - Für Kopfhörer oder NF-Verstärker
  • Material
  • Metallausführung
  • von Radiomuseum.org
  • Modell: Multi-Mixing Amplifier MA-100 - Pioneer Corporation; Tokyo
  • Form
  • Regalgerät wie HiFi-Komponente für Bücherwand.
  • Abmessungen (BHT)
  • 420 x 158 x 227 mm / 16.5 x 6.2 x 8.9 inch
  • Bemerkung

  • A hi-fi multi-mixing amplifier with 6 inputs, parametric equalization and electronic echo.

    Features
    • 6 inputs for mixing:
    The MA-100 accepts and mixes one tape, one source and four additional inputs, a total of six inputs. The last four may be any combination of electric instruments (guitars, etc.) and microphones.

    • Panpots for the additional inputs (CH. 1 through 4):
    The sonic image can be moved and fixed anywhere within the stereo sound field.

    • Echo, chorus and duet:
    To each of the six individual inputs, the MA-100 can apply one special effect in addition to echo. Chorus adds a backup group to a solo act; duet turns a solo into a duet.

    • BBD (Bucket Brigade Device) electronic echo:
    For natural, low-distortion application of echo. Adjustable over a 3-second range.

    • Parametric equalizer for two inputs (CH. 3 and 4):
    Select two frequencies, any low frequency between 100Hz and 900Hz, and any high frequency between 1kHz and 13kHz. Gain for each selected frequency is variable over a ±10dB range.

    Specification
    INPUT
    150mV output setting, max. master volume
    Sensitivity/Impedance
     SOURCE INPUT TAPE PLAY GRAPHIC INPUT
     MIC
     CH-1—CH-4 GUITAR
     INST    		 85mV/50kΩ
    0.4mV/50kΩ
    4mV/50kΩ
    38mV/50kΩ
    OUTPUT
     SOURCE OUTPUT
     TAPE REC
     GRAPHIC OUT    		 150mV/600Ω
    85mV/2.2kΩ
    85mV/600Ω
    Rated Distortion
    (1.5V output, 1kHz
    0.008%
    Gain
     SOURCE, TAPE
     MIC, CH-1 — CH-4
     GUITAR
     INST    		 +5dB
    51dB (0.4mV/50kΩ)
    31dB (4mV/50kΩ)
    12dB (38mV/50kΩ)
    Parametric Equalizer Level ±10dB
    Parametric Equalizer Frequency Band LOW: 100Hz—900Hz
    HIGH: 1kHz—13kHz
    Noise (1V Converted S/N)
     SOURCE, TAPE
     MIC, GUITAR, INST (CH-1 — CH-4)
    83dB
    75dB
    Echo Time Max 3 sec
    Frequency Response (-3dB point)
     CH-1 — CH-4 ..... MIC
     GUITAR, INST
     TAPE, SOURCE    		 150Hz—20kHz
    30Hz—20kHz
    10Hz—80kHz +0dB,-3dB

    Übertragungsbereich: 10 Hz ...80 kHz

    Versions/Power requirements

    KU USA 120V AC 60Hz
    HE Europe 220, 240V AC 50/60Hz switchable
    HB UK 240, 220V AC 50/60Hz switchable
    R General 110-120V, 220-240V AC 50/60Hz with voltage selector
    R/G US Military 110-120V, 220-240V AC 50/60Hz with voltage selector

    Power consumption:  12 watts

  • Nettogewicht
  • 4.2 kg / 9 lb 4 oz (9.251 lb)
  • Literaturnachweis
  • - - Manufacturers Literature (1983 & 1985 Hi-Fi Components catalogues)
  • Literatur/Schema (1)
  • - - Manufacturers Literature (Operating Instructions Pioneer MA-100)
  • Literatur/Schema (2)
  • - - Manufacturers Literature (Service Manual MA-100 dated May 1983)
  • Autor
  • Modellseite von Wolfgang Lill angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
