Multi-Play Compact Disc Player PD-M450

Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181609) R-Player Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181610) R-Player

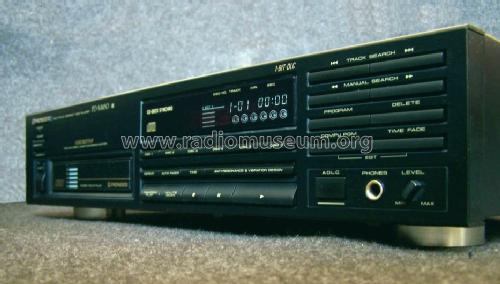

Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181611) R-Player Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181612) R-Player
Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181613) R-Player Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1722583) R-Player
Use red slider bar for more.
Multi-Play Compact Disc Player PD-M450; Pioneer Corporation; (ID = 1181609) R-Player
Pioneer Corporation;: Multi-Play Compact Disc Player PD-M450 [R-Player] ID = 1181609 933x374
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multi-Play Compact Disc Player PD-M450, Pioneer Corporation; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1991 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details CD-Player, -Writer, MD, MOD (audio); Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / See notes below Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Multi-Play Compact Disc Player PD-M450 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 96 x 291 mm / 16.5 x 3.8 x 11.5 inch
Notes

A stereo hi-fi 6 disc magazine changer compact disc player. 1 Bit Direct Linear Conversion System (1 bit DLC), Automatic Digital Level Controller (ADLC), CD-Deck Synchro.

Specification
TypeCompact disc digital audio system
Number of channels2 channels (stereo)
Frequency response 2Hz-20kHz
S/N ratio102dB or more (EIAJ)
Dynamic range96dB or more (EIAJ)
Total harmonic distortion0.003% or less (EIAJ)
Output voltage2.0 V
Wow and flutterLimit of measurement
Output terminals
Audio line output phono sockets
Control input/output jacks
  (Not the multi-voltage model)

CD-DECK SYNCHRO jack

Versions/Power requirements
European model                /  220 - 230V AC 50/60 Hz
UK and Australian models  /  230 - 240V AC 50/60 Hz
US & Canadian model        /  120V AC 60Hz
Other models                    /  110/120 - 127/220/240V AC 50/60 Hz (Switchable)

Power consumption        12 W

Net weight (2.2 lb = 1 kg) 3.9 kg / 8 lb 9.4 oz (8.59 lb)
Literature/Schematics (1) - - Manufacturers Literature (Service manual PD-M550 PD-M455 PD-M453 PD-M450 dated Mar 1991)
Literature/Schematics (2) - - Manufacturers Literature (Operating Instructions PD-M550 PD-M455 PD-M453 PD-M450)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
