Stereo Record Player Hi-Auto PL-30

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 142720

 Technical Specifications

  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 or 117 or 130 or 220 or 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Record Player Hi-Auto PL-30 - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 470 x 170 x 375 mm / 18.5 x 6.7 x 14.8 inch
  • Notes

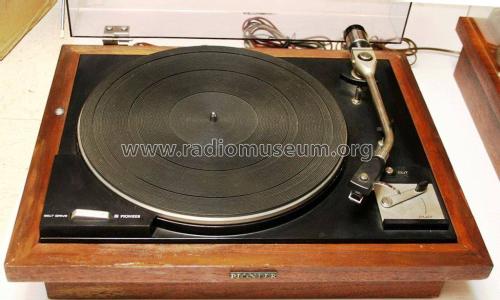

  • A two speed 33/45rpm hi-fi belt drive stereo turntable complete with tonearm and cartridge and hinged dust cover. With arm lift and automatic tonearm return mechanism.

    Specification
    Drive system:            Belt driven system
    Drive motor:              4.pole synchronous motor
    Speed.                     Two speeds; 33⅓ and 45 rpm
    Platter:                     30 cm (12in.) diameter aluminum alloy diecasting, 1.2 kg in weight
    Wow and flutter         Less than 0.1%
    S/N ratio:                  More than 43 dB
    Tonearm.                  Static balance type pipe arm
    Tracking error:           ± 1 degree
    Cartridge:                  Moving magnet type (Model PC-10)
    Stylus:                     0.6 mil, diamond (Model PN-10)
    Stylus pressure:        2.5 to 3.5 grams
    Frequency response: 20 Hz to 20,000 Hz
    Output voltage:          5 mV (1,000 Hz, 50 mm/s)
    Output balance:         Less than 2 dB
    Separation:               More than 20 d8 (at 1,000 Hz)

    Line voltage:              AC 110 / 117 / 130 / 220 / or 240 V 50/60 Hz) switchable 17 VA

    Riemengetriebener Plattenspieler mit 2 Geschwindigkeiten (33 und 45 Upm).

  • Net weight (2.2 lb = 1 kg)
  • 10 kg / 22 lb 0.4 oz (22.026 lb)
  • Source of data
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (PL-30 Operating Manual)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
