• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1987

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 224643

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 160 W (240 W max.)

• Material
• Metal case

• from Radiomuseum.org

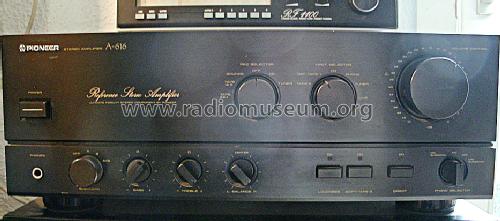

• Model: Reference Stereo Amplifier A-616 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 435 x 162 mm / 16.5 x 17.1 x 6.4 inch

• Notes

• Anschlüsse

  • Anzahl der Eingänge:
    • Phono (MM/MC wählbar): 2,5 mV / 50 kOhm (MM), 0,2 mV / 100 kOhm (MC)
    • CD, Tuner, Line, 3x Tape In: 150 mV / 50 kOhm
  • Anzahl der Ausgänge:
    • 3x Tape Out: 150 mV / 2,2 kOhm
    • Kopfhörer (6,3 mm Klinke, vorne)
    • 2 Lautsprecherpaare

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 800.00 DM

• Author
• Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
