- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1986 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 282962
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 3 Loudspeakers
- Power out
- 100 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

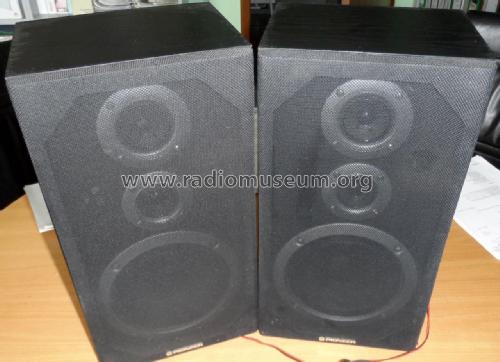

- Model: S-Z74 - Pioneer Corporation; Tokyo
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 235 x 445 x 200 mm / 9.3 x 17.5 x 7.9 inch
- Notes
-
Musikleistung nach DIN 100 Watt, Impedanz 8 Ohm, Made in Portugal.
Bass-reflex system. Woofer diameter 16 cm, mid-range 6.6 cm, tweeter 5.2 cm. Frequency response: 50 to 20,000 Hz. Cross-over frequencies: 2,300 and 12,000 Hz.
- Net weight (2.2 lb = 1 kg)
- 4 kg / 8 lb 13 oz (8.811 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Wolfgang Lill. See "Data change" for further contributors.
