Stereo Amplifier SA-500

Stereo Amplifier SA-500; Pioneer Corporation; (ID = 235049) Ampl/Mixer

Stereo Amplifier SA-500; Pioneer Corporation; (ID = 235050) Ampl/Mixer

Stereo Amplifier SA-500; Pioneer Corporation; (ID = 235051) Ampl/Mixer

Stereo Amplifier SA-500; Pioneer Corporation; (ID = 1891241) Ampl/Mixer
Stereo Amplifier SA-500; Pioneer Corporation; (ID = 2304637) Ampl/Mixer Stereo Amplifier SA-500; Pioneer Corporation; (ID = 2304639) Ampl/Mixer
Stereo Amplifier SA-500; Pioneer Corporation; (ID = 215163) Ampl/Mixer Stereo Amplifier SA-500; Pioneer Corporation; (ID = 215165) Ampl/Mixer
Stereo Amplifier SA-500; Pioneer Corporation; (ID = 1891228) Ampl/Mixer Stereo Amplifier SA-500; Pioneer Corporation; (ID = 1891233) Ampl/Mixer
Stereo Amplifier SA-500; Pioneer Corporation; (ID = 1891238) Ampl/Mixer Stereo Amplifier SA-500; Pioneer Corporation; (ID = 1891244) Ampl/Mixer
Stereo Amplifier SA-500; Pioneer Corporation; (ID = 2540059) Ampl/Mixer Stereo Amplifier SA-500; Pioneer Corporation; (ID = 2540060) Ampl/Mixer
Use red slider bar for more.

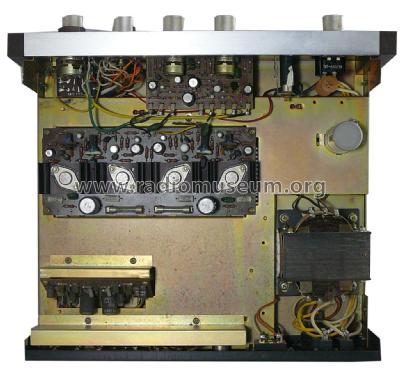

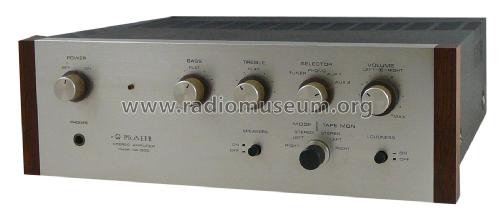

Stereo Amplifier SA-500; Pioneer Corporation; (ID = 2304637) Ampl/Mixer
Pioneer Corporation;: Stereo Amplifier SA-500 [Ampl/Mixer] ID = 2304637 1400x604
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier SA-500, Pioneer Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1969 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 18:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 44 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier SA-500 - Pioneer Corporation; Tokyo
Material Metal case
Dimensions (WHD) 330 x 118 x 313 mm / 13 x 4.6 x 12.3 inch
Notes

Music Power output:
    44 watts total into 4Ω (stereo, H.D. 0.5%, IHF rating)
    36 watts total into 8Ω (stereo, H.D. 0.5%, IHF rating)
Continuous Power: each channel driven
    8Ω 13W / 13W (H.D. 0.5%, 1kHz)
Continuous Power: both channel driven
    4Ω 12W / 12W (H.D. 0.5%, 1kHz)
    8Ω 10W / 10W (H.D. 0.5%, 1kHz)
Frequency response: 20Hz to 50kHz +/- 1dB
Total harmonic distortion: less than 0.5% at 1kHz rated power output
Damping factor: 40/8Ω at 1kHz
Power Bandwidth: 20Hz to 40kHz (AUX)
Signal to noise ratio: 75dB (MM), 90dB (line)
Equalization Curves: RIAA
Tone Controls (each channel):
    bass - boost 13dB, cut 13.5dB at 50Hz
    treble - boost 8dB, cut 11dB at 10kHz
    loudness - boost 12dB at 50Hz, boost 5.5dB at 10kHz
Input sensitivity: 2.4mV (MM), 193mV (line)
Speaker load impedance: 4Ω to 16Ω

Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 616.00 DM
Source of data - - Data from my own collection
Mentioned in High Fidelity Jahrbuch 1969
