Stereo Amplifier SA-5200

Pioneer Corporation; Tokyo

Datos
Foro
Imágenes
Colecciones

  • Año
  • 1973/1974
  • Categoría
  • Amplificador de audio o mezclador
  • Radiomuseum.org ID
  • 199169

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de transistores
  • 22
  • Semiconductores
  • Principio principal
  • Amplificador de Audio
  • Gama de ondas
  • - no hay
  • Especialidades
  • Hi-Fi equipment
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 120; 110/120/220/240 Volt
  • Altavoz
  • - Este modelo usa altavoz exterior (1 o más).
  • Potencia de salida
  • 20 W (undistorted)
  • Material
  • Madera
  • de Radiomuseum.org
  • Modelo: Stereo Amplifier SA-5200 - Pioneer Corporation; Tokyo
  • Forma
  • Unidad para estanteria.
  • Ancho, altura, profundidad
  • 415 x 132 x 328 mm / 16.3 x 5.2 x 12.9 inch
  • Anotaciones

  • A hi-fi stereo integrated amplifier housed in a wooden case with continuous power output of  10W+10W into 8 ohms. With rotary controls for Volume/Balance, Bass and Treble, rotary switch for Function (Phono, Tuner, Aux1, Aux2), push button switches for Power, Speakers A and/or B, Tape Monitor, Loudness and Mode (Stereo, Mono) and a jack for Headphones. On the rear panel, RCA phono sockets for input Phono, Tuner, Aux1 and Aux2, for input/output Tape, a DIN socket for Tape Rec/Pb, terminals for two pairs of loudspeakers (A, B) and two AC outlets, 1 switched (150W max) and 1 unswitched (250W max).

    Specification
    Power Amplifier Section
    Continuous Power Output
    20Hz-20kHz into 8Ω
    Both channels driven    		 10W+10W
    Harmonic Distortion
    Continuous Power Output    		 < 0.8%
    Intermodulation Distortion
    Continuous Power Output    		 < 0.8%
    Power Bandwidth IHF
    Both channels driven    		 10Hz-40kHz (THD 0.8%)
    Output
     Speaker
     Headphones
    A, B, A+B (4-16Ω)
    4-16Ω
    Damping Factor (1kHz, 8Ω) > 30
    Residual Hum & Noise
    8Ω, Pre & Power-amplifier    		 < 1mV (0.13µW)
    Preamplifier Section
    Input Sensitivity/Impedance
     PHONO
     TUNER
     AUX 1
     AUX 2
     TAPE MONITOR
     TAPE REC/PB (DIN connector)
    2.5mV/50kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    150mV/100kΩ
    Output Level/Impedance
     TAPE REC
     TAPE REC/PB (DIN connector)
    150mV
    30mV/80kΩ
    Frequency Response
     PHONO  (RIAA equalization)
     TUNER, AUX, TAPE MON
    30Hz-15kHz ±0.5dB
    15Hz-30kHz ±1dB
    Hum & Noise
    (IHF, Short-circuited, A Network)
     PHONO
     TUNER, AUX, TAPE MON

    > 70dB
    > 90dB

    Semiconductors:  22 transistors, 7 diodes

    Versions/Power requirements

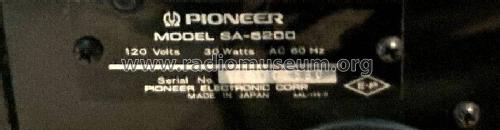

    KU USA                  /  120V AC 60Hz
    KC Canada             /  120V AC 60Hz
    FV General Export  /  110/120/130/220/240V AC 50/60Hz with voltage selector

    Power consumption: 30 watts, 85 watts max.

  • Peso neto
  • 7.2 kg / 15 lb 13.7 oz (15.859 lb)
  • Procedencia de los datos
  • -- Original-techn. papers.
  • Mencionado en
  • - - Manufacturers Literature (1973 & 1974 Stereo Components catalogues)
  • Documentación / Esquemas (1)
  • - - Manufacturers Literature (Service manual Pioneer SA-5200)
  • Documentación / Esquemas (2)
  • - - Manufacturers Literature (Operating Instructions Pioneer SA-5200)
