• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1971 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 285100

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 6 Loudspeakers

• Power out
• 80 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Speaker System CS-88A - Pioneer Corporation; Tokyo

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 15 x 26 x 12.7 inch / 381 x 660 x 323 mm

• Notes

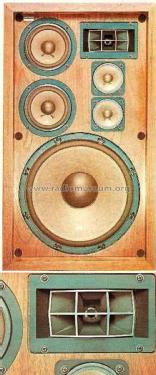

• Pioneer 4-Way 6-Speaker System Model CS-88A.
  Frequency Response: 25Hz to 20kHz
  Power Handling: 80 Watts
  Impedance: 8Ω
  Drivers:
  Bass: 1x 12" cone type
  Midrange: 2x 5" cone type
  Tweeter: 2x 3" cone type
  Super Tweeter: 1x multi cellular horn
  Enclosure: infinite baffle
  Grille: pleated saran cloth
  Finish: walnut

• Net weight (2.2 lb = 1 kg)
• 47.3 lb (47 lb 4.8 oz) / 21.474 kg

• Mentioned in
• - - Manufacturers Literature (Instruction & Owners Manual)

• Literature/Schematics (1)
• -- Original prospect or advert (Pioneer Catalogue - 'Stereo Components')

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
