Stereo Amplifier SA-410

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1980/1981
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 193619

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Amplifier SA-410 - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 94 x 265 mm / 16.5 x 3.7 x 10.4 inch
  • Notes

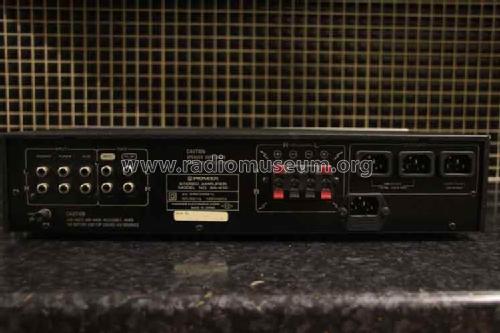

  • A hi-fi stereo integrated amplifier housed in a metal case with continuous power output of 20 watts per channel into 8 ohms. With rotary controls for Volume, Balance, Bass and Treble, rotary Function selector (Tuner, Phono, Aux), switches for Tape Monitor, Loudness, Loudspeakers and a jack for headphones. On the rear panel, RCA phono sockets for input Phono, Tuner and Aux, for input/output Tape, terminals for 2 pairs of loudspeakers. In addition the KU, HE, HB and S models have 3 AC outlets 100 watts max., 2 switched and 1 unswitched.

    Specification
    Amplifier Section
    Continuous Power Output 20 watts per channel into 8Ω
    from 30Hz to 20,000Hz
    with no more than 0.1% THD
    Intermodulation Distortion
    continuous rated power output    		 No more than 0.2%
    Damping Factor
     (20Hz - 20,000Hz, 8Ω)    		 30
    Input (Sensitivity/Impedance)
     PHONO
     TUNER
     AUX
     TAPE PLAY    		 2.5mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    150mV/50kΩ
    Output (level)
     TAPE REC
     Speaker    		 150mV
    A, B, OFF
    Frequency Response
     PHONO (RIAA Equalization)
     TUNER, AUX, TAPE PLAY    		 30Hz - 15kHz ±0.5dB
    10Hz - 60kHz ±3dB
    Hum and Noise
    (IHF, short-circuited, A network)
     PHONO
     TUNER AUX, TAPE PLAY    		 72dB
    97dB
    Hum and Noise
    (DIN continuous power/50mW)
     PHONO
     TUNER, AUX, TAPE PLAY    		 67dB/61dB
    83dB/63dB

    Versions/Power requirements

    KU USA 120V AC 60Hz only
    S  General export 110V, 120V, 220V and 240V AC 50/60Hz (with voltage selector)
    HE Europe 220V and 240V AC 50/60Hz
    HB UK 220V and 240V AC 50/60Hz
    YP Australia  240V AC 50/60Hz only

    Power consumption: 140 watts (HE, HB),  55 watts (KU, S, YP)

  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy
  • Literature/Schematics (1)
  • - - Manufacturers Literature (1980/81 Pioneer Hi-Fi Stereo catalogue)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service manual Pioneer SA-410 dated Mar 1980)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
