Stereo Cassette Tape Deck Amplifier DC-X77Z

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1988 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 325275

 Technical Specifications

  • Number of Transistors
  • 36
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player

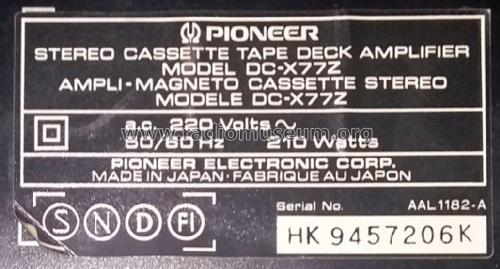

  • Power type and voltage
  • Alternating Current supply (AC) / 50/60 Hz: 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Cassette Tape Deck Amplifier DC-X77Z - Pioneer Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 190 x 283 mm / 14.2 x 7.5 x 11.1 inch
  • Notes

  • Stereo Amplifier with dual stereo cassette recorder/player.

    Amplifier:  Inputs for Tuner - CD - Video - Phono.  Dedicated socket for tuners F-X88Z, F-X88ZL, F-X77Z, F-X77ZL and F-X77ZLS. Turntable accepted only PL-X77Z and PL-X88Z 12 V.
    Graphic equalizer ± 7 dB at 100 Hz, 330 Hz, 1 kHz, 3.3 kHz, 10 kHz.
    Frequency response: 40 to 20,000 Hz.

    Tape deck: High/normal dubbing speed. Tape I (left) only playback. Tape II (right) Play/record. Two motors. Frequency response: Normal tape: 35 to 14,000 Hz; CrO2 tape: 35 to 15,000 Hz.

    36 transistors, 7 ICs, 33 diodes and 6 rectifier diodes, listed one per type and not all.

    Made in Japan

  • Net weight (2.2 lb = 1 kg)
  • 6.8 kg / 14 lb 15.6 oz (14.978 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
