Stereo Power Amplifier M-IS22

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 2001
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 323034

 Technical Specifications

  • Number of Transistors
  • 16
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 220-230; 230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 130 W (200 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Stereo Power Amplifier M-IS22 - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 160 x 300 x 237 mm / 6.3 x 11.8 x 9.3 inch
  • Notes

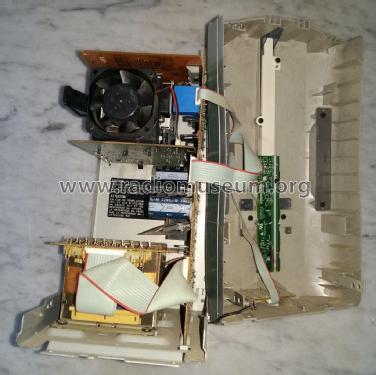

  • A stereo power amplifier without controls housed in an aero duct contruction case, a component of a hi-fi system which includes the XC-IS22CD CD Tuner Deck with infrared remote control and S-IS22 or S-IS22S Speaker system.  All controls are provided by the CD Tuner deck. Continuous output power 2 x 65 watts DIN into 6 ohms.

    Specification
    Continuous Power (RMS)
    (1kHz, THD 10%, 6Ω)
    100W + 100W
    Continuous Power (DIN)
    (1kHz, THD 1%, 6Ω)
    65W + 65W
    Music Power (DIN)
    (1kHz, THD 1%, 6Ω)
    150W + 150W
    Output impedance 6Ω

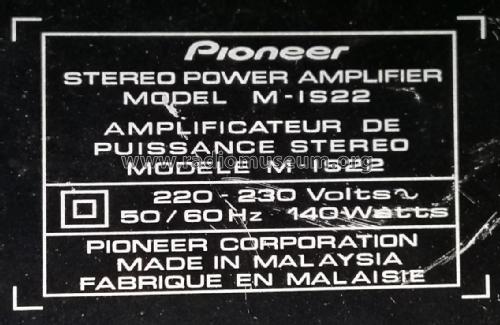

    Versions/Power requirements
    MYXJQ / AC220-230V
    NVXJQ / AC230V

    Power consumption:  140 watts

    16 transistors, 4 ICs, 53 diodes and 2 rectifier bridges, listed one per type and not all.

    Made in Malaysia

  • Net weight (2.2 lb = 1 kg)
  • 4.1 kg / 9 lb 0.5 oz (9.031 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Pioneer M-IS22 dated Apr 2001)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
