• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1982 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 252875

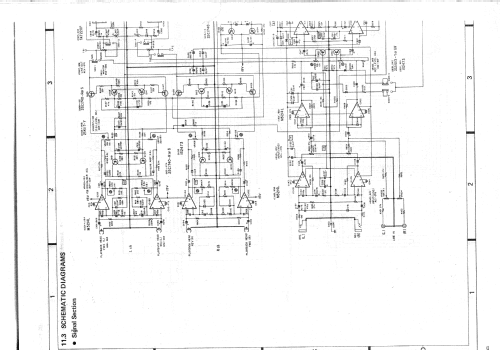

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 120; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tape Deck RT-909 - Pioneer Corporation; Tokyo

• Shape
• Rack

• Dimensions (WHD)
• 480 x 340 x 318 mm / 18.9 x 13.4 x 12.5 inch

• Net weight (2.2 lb = 1 kg)
• 21 kg / 46 lb 4.1 oz (46.256 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
