Stereo Transmitter TM-5 / N

Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773919) Commercial Tr Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773920) Commercial Tr
Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773921) Commercial Tr Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773923) Commercial Tr
Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773925) Commercial Tr Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773926) Commercial Tr
Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773928) Commercial Tr Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1775447) Commercial Tr
Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1775448) Commercial Tr Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1775449) Commercial Tr
Use red slider bar for more.

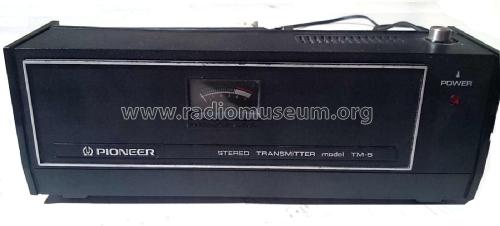

Stereo Transmitter TM-5 / N; Pioneer Corporation; (ID = 1773919) Commercial Tr
Pioneer Corporation;: Stereo Transmitter TM-5 / N [Commercial Tr] ID = 1773919 1400x634
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Transmitter TM-5 / N, Pioneer Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1975–1979 Category: Commercial Transmitter (TX not Transceiver)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transmitter
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Stereo Transmitter TM-5 / N - Pioneer Corporation; Tokyo
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 240 x 88 x 64 mm / 9.4 x 3.5 x 2.5 inch
Notes

FM 78 / 78,5 MHz. With SEW-5 Wireless Headphones.

Net weight (2.2 lb = 1 kg) 0.9 kg / 1 lb 15.7 oz (1.982 lb)
Price in first year of sale 8'300.00 Yen
Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
