Auto-Return Stereo Turntable PL-Z81

Pioneer Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1988/1989
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 291219

 Technical Specifications

  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Record Player (not changer); Hi-Fi equipment
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Auto-Return Stereo Turntable PL-Z81 - Pioneer Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 360 x 90 x 340 mm / 14.2 x 3.5 x 13.4 inch
  • Notes

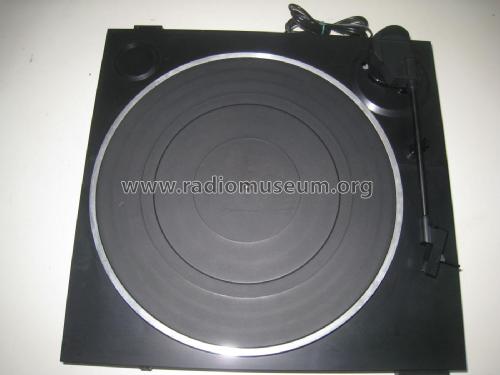

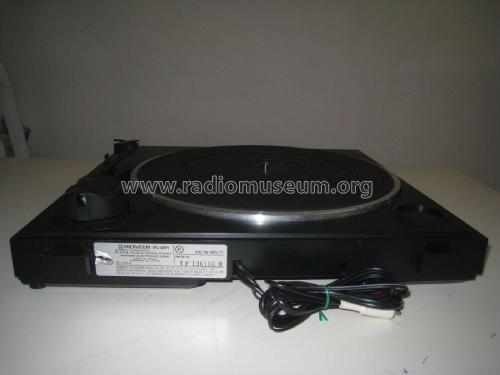

  • An auto-return hi-fi stereo two speed belt drive turntable complete with tonearm and cartridge. Powered by a supplied 12V mains adaptor.

    Specification
    Turntable
    Motor, Platter
     Motor Type DC servo motor, SH rotor
     Drive Method belt drive
     Speed 33⅓, 45 rpm
     Speed Variation 0.07% WRMS (JIS ±0.10% WTD), Peak (DIN)
    S/N Ratio  68dB (DIN-B)
    Platter 295mm dia. aluminum die-cast
    Tonearm
    Type Dynamic-balance type, straight tonearm
    Installed Cartridge PC-210
    Type MM
    Replacement Stylus PN-210
    Stylus 0.6 mil diamond
    Output voltage 2.5mV (1kHz, 3.54cm/s, Lat. peak)
    Tracking Force 2-3.0g (optimum 2.5g)
    Frequency Response 20Hz to 20,000Hz
    Load Resistance 47kΩ
    Cartridge Weight 4g

    Similar to the Pioneer PL-Z91 Full Automatic Stereo Turntable.

  • Net weight (2.2 lb = 1 kg)
  • 2.7 kg / 5 lb 15.2 oz (5.947 lb)
  • Mentioned in
  • -- Original prospect or advert (1988-89 Pioneer Audio & Video Components & Systems catalogue)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual Pioneer PL-Z91 / PL-Z81 dated Jan 1988)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
