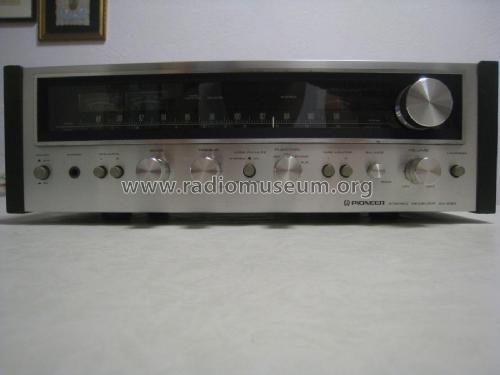

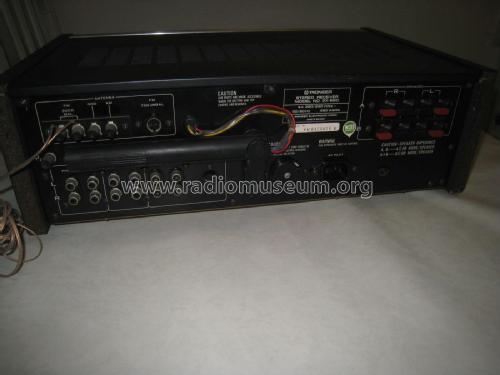

Stereo Receiver SX-690

Stereo Receiver SX-690; Pioneer Corporation; (ID = 393519) Radio Stereo Receiver SX-690; Pioneer Corporation; (ID = 393520) Radio
Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029436) Radio Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029437) Radio
Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029438) Radio Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029439) Radio
Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029440) Radio Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029441) Radio
Stereo Receiver SX-690; Pioneer Corporation; (ID = 2029442) Radio
Use red slider bar for more.
Stereo Receiver SX-690; Pioneer Corporation; (ID = 393519) Radio
Pioneer Corporation;: Stereo Receiver SX-690 [Radio] ID = 393519 700x225
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver SX-690, Pioneer Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Pioneer Corporation; Tokyo
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 37 W (unknown quality)
from Radiomuseum.org Model: Stereo Receiver SX-690 - Pioneer Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 435 x 145 x 314 mm / 17.1 x 5.7 x 12.4 inch
Net weight (2.2 lb = 1 kg) 8.9 kg / 19 lb 9.7 oz (19.604 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Pioneer Corporation; Tokyo
Here you find 936 models, 923 with images and 164 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
