• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1974

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 85921

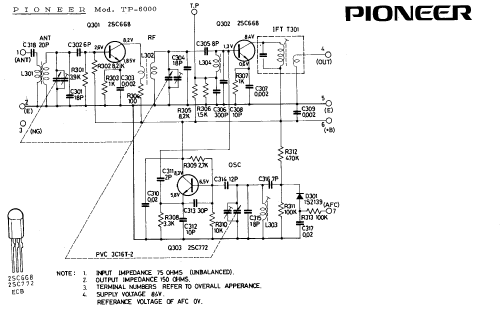

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

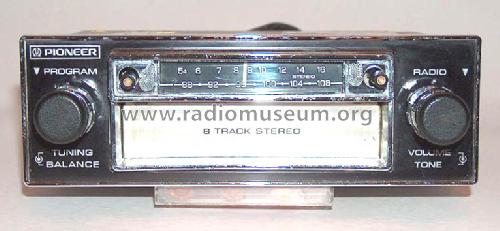

• Model: Car Radio TP-6000 - Pioneer Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 55 x 160 mm / 7.1 x 2.2 x 6.3 inch

• Notes
• Eingebautes Abspielgerät für 8-Spur-Tonkassetten (8 Track Stereo).

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Hilmer Grunert. See "Data change" for further contributors.
