• Country
• Japan

• Manufacturer / Brand
• Pioneer Corporation; Tokyo

• Year
• 1976 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 107479

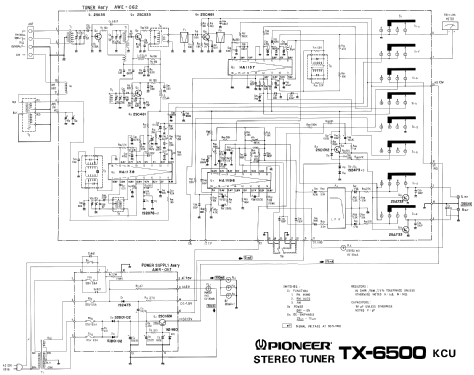

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• 2SK55 2SC535 2SC461 2SC461 2SC1312 2SA733 2SA733 2SC1626 HA1137 HA1138 HA1196

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tuner TX-6500 - Pioneer Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 380 x 139 x 322 mm / 15 x 5.5 x 12.7 inch

• Notes

• A hi-fi AM/FM stereo tuner housed in a metal case. Wooden outer case optional. Superceded by the Pioneer TX-6500II.

  Versions/Power requirements
  KCU USA and Canada / 120V AC 60Hz

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Schematic

• Author
• Model page created by George Cokkinides. See "Data change" for further contributors.
