Stereo CD Cassette Deck Receiver XR-A600
Pioneer Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Pioneer Corporation; Tokyo
- Year
- 1997
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 204273
For sale on adverts.ie item 1864790
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Stereo CD Cassette Deck Receiver XR-A600 - Pioneer Corporation; Tokyo
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 270 x 310 x 344 mm / 10.6 x 12.2 x 13.5 inch
- Notes
- Midi-Kompaktanlage mit eingebautem Doppel-Kassettendeck und 3fach CD-Wechsler.
- Net weight (2.2 lb = 1 kg)
- 8.1 kg / 17 lb 13.5 oz (17.841 lb)
- Literature/Schematics (1)

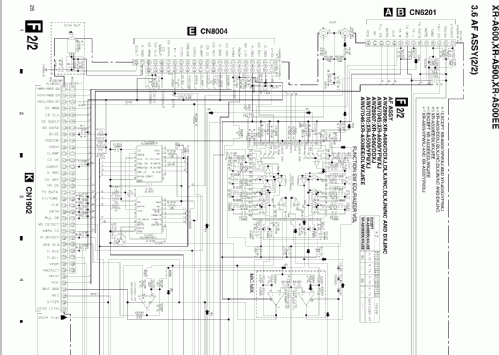

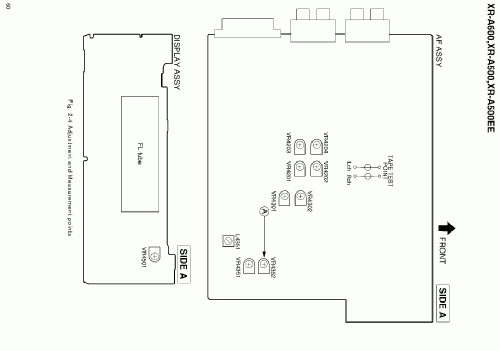

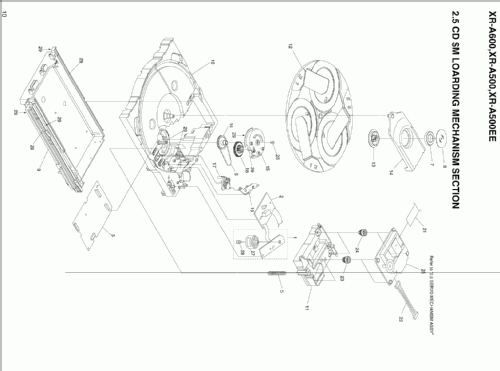

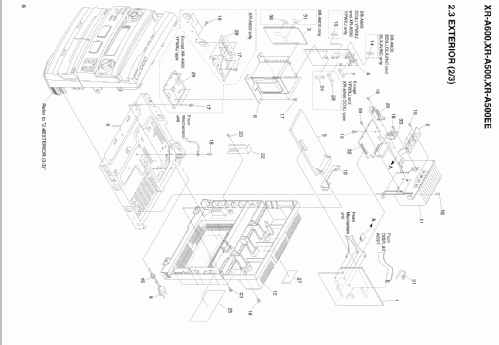

- - - Manufacturers Literature (Service manual for the XR-A600 XR-A500 dated Dec 1998)
- Author
- Model page created by Julián Muñoz Lorenzo. See "Data change" for further contributors.
