Sky-Master 53 Type G
Pizon Bros (JMP); Paris
- Country
- France
- Manufacturer / Brand
- Pizon Bros (JMP); Paris
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 83799

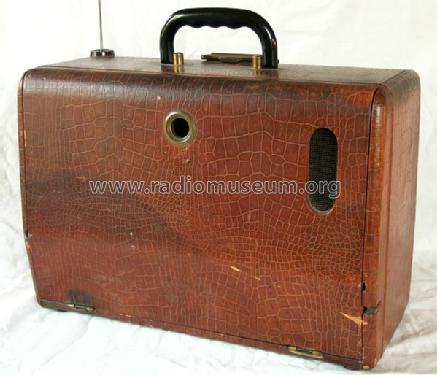

Front mit geschlossenem Deckel

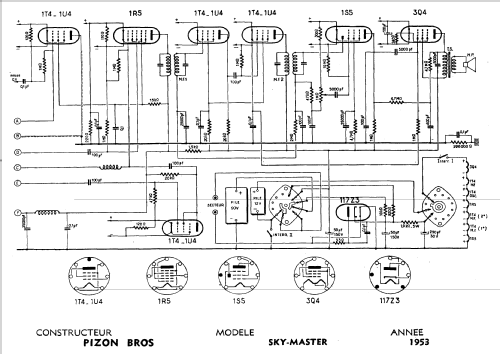

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Line / Batteries (any type) / AC/DC: 110-125 / 2 x 6 & 2 x 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Sky-Master 53 Type G - Pizon Bros JMP; Paris
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 390 x 290 x 190 mm / 15.4 x 11.4 x 7.5 inch
- Notes
-
8 gammes d'ondes dont 6 bandes étalées OC. Récepteur tropicalisé.
Alimentation sur tous courants 110 à 125 (120 à 125) volts, sur piles, ou sur accu à l'aide d'une commutatrice 110 volts. Pour le fonctionnement sur secteur alternatif supérieure à 125 volts un autotransformateur doit être utilisé.
- Author
- Model page created by Martin Dill. See "Data change" for further contributors.
