• Country
• France

• Manufacturer / Brand
• Pizon Bros (JMP); Paris

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 70988

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2N412 2N410 2N410 2N406 2N408 2N408 OA90 or. 40P1

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch

• Power out
• 0.15 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

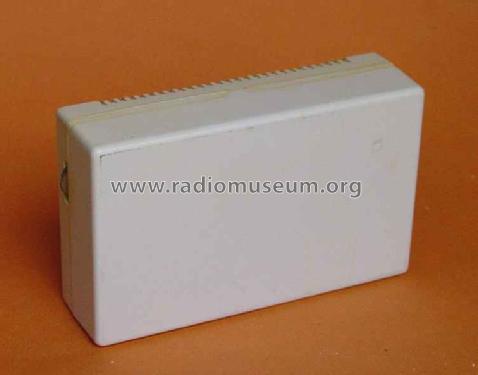

• Model: Translitor Pocket - Pizon Bros JMP; Paris

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 120 x 34 x 73 mm / 4.7 x 1.3 x 2.9 inch

• Notes

• Coffret plastique antichoc, 4 coloris.

• Net weight (2.2 lb = 1 kg)
• 0.250 kg / 0 lb 8.8 oz (0.551 lb)

• Price in first year of sale
• 200.00 FRF

• External source of data
• Serge Laffont/Martin Renoth

• Mentioned in
• -- Original prospect or advert (Radio Électronique Professionnelle, Oct. 1960)

• Literature/Schematics (1)
• Schémathèque Sorokine (SRK) (No. 1028, 1063)

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.
