Translitor 500
Pizon Bros (JMP); Paris
- Country
- France
- Manufacturer / Brand
- Pizon Bros (JMP); Paris
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 111563
Dépliant modèle
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Dry Batteries / 1 x 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.35 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

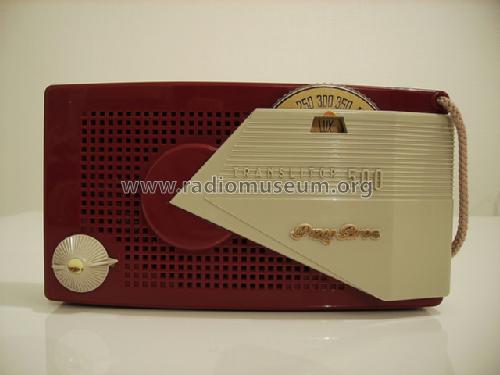

- Model: Translitor 500 - Pizon Bros JMP; Paris
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 97 x 45 mm / 7.1 x 3.8 x 1.8 inch
- Notes
-
2 gammes d'ondes : PO de 187 à 570 m, GO de 1000 à 2000 m. Cadre ferrite de 165 mm incorporé. HP elliptique de 8 x 14 cm.
Coffret plastique "Impact" 2 tons, 6 combinaisons de coloris beige, corail, et vert.
Sac de transport pour 1600 Fr.
- Net weight (2.2 lb = 1 kg)
- 0.650 kg / 1 lb 6.9 oz (1.432 lb)
- Price in first year of sale
- 29,950.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- Schémathèque Sorokine (SRK) (No. 1063)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
