Trav-ler 50

Trav-ler 50; Pizon Bros JMP; (ID = 2048900) Radio
Trav-ler 50; Pizon Bros JMP; (ID = 1988528) Radio Trav-ler 50; Pizon Bros JMP; (ID = 2082299) Radio
Trav-ler 50; Pizon Bros JMP; (ID = 2082300) Radio Trav-ler 50; Pizon Bros JMP; (ID = 2082302) Radio
Trav-ler 50; Pizon Bros JMP; (ID = 667511) Radio Trav-ler 50; Pizon Bros JMP; (ID = 667512) Radio
Trav-ler 50; Pizon Bros JMP; (ID = 667513) Radio Trav-ler 50; Pizon Bros JMP; (ID = 667509) Radio
Trav-ler 50; Pizon Bros JMP; (ID = 667510) Radio Trav-ler 50; Pizon Bros JMP; (ID = 667508) Radio
Use red slider bar for more.
Trav-ler 50; Pizon Bros JMP; (ID = 1988528) Radio
Pizon Bros JMP;: Trav-ler 50 [Radio] ID = 1988528 1400x1006
Select picture or schematic to display from thumbnails on the right and click for download.
For model Trav-ler 50, Pizon Bros (JMP); Paris

Country:  France
Manufacturer / Brand:  Pizon Bros (JMP); Paris
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 1R5 1T4 1T4 1S5 3Q4 35W4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Line / Batteries (any type) / AC/DC: 110-250 / 9 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Trav-ler 50 - Pizon Bros JMP; Paris
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 330 x 250 x 140 mm / 13 x 9.8 x 5.5 inch
Notes

3 gammes d'ondes : OC de 16 à 50 m, PO de 187 à 570 m, GO de 1000 à 2000 m.

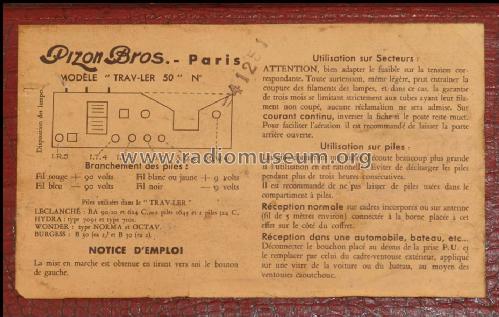

Alimentation HT avec 2 piles 45 V ou 1 pile 90 V, BT 2 piles 4.5 V ou 1 pile 9 V.

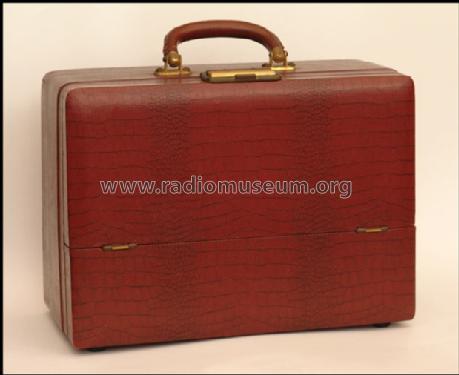

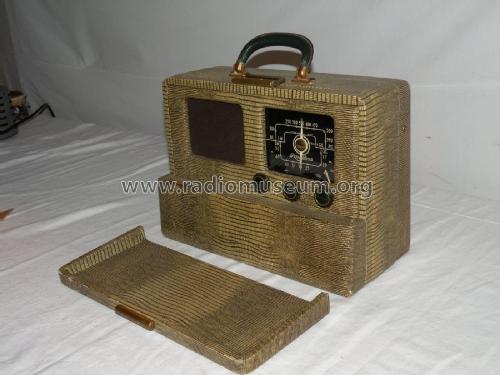

Coffret gainé, quatre coloris : simili crocodile marron, bordeaux ou havane; simili lézard beige. À la demande gainage en cuir véritable, tous coloris.

Poids avec piles.

Voir aussi modèle Trav-ler sans possibilité de connection d'un cadre extérieur.

Net weight (2.2 lb = 1 kg) 7.5 kg / 16 lb 8.3 oz (16.52 lb)
Mentioned in -- Original prospect or advert
Literature/Schematics (1) Toute la radio (No. 150, Nov. 1950)

Model page created by Jean Claude Pigeon † 2008. See "Data change" for further contributors.
