Mike Radio "WNIL 95.3 FM"

Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746935) Radio
Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746915) Radio Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746916) Radio
Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746917) Radio Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746918) Radio
Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746920) Radio Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746921) Radio
Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746922) Radio
Use red slider bar for more.
Mike Radio 'WNIL 95.3 FM' ; Point of Purchase (ID = 746915) Radio
Point of Purchase: Mike Radio "WNIL 95.3 FM" [Radio] ID = 746915 186x361
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mike Radio 'WNIL 95.3 FM', Point of Purchase Displays, - see also Coca-Cola:
Share freely

Country:  United States of America (USA)
Manufacturer / Brand:  Point of Purchase Displays, - see also Coca-Cola
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 19EA8 12BA6 12BA6 12AV6 50C5
Main principle Superheterodyne (common); ZF/IF 10700 kHz; 2 AF stage(s); something special ? Please give information (notes)
Wave bands FM Broadcast Band Only
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Mike Radio "WNIL 95.3 FM" - Point of Purchase Displays, -
Material Modern plastics (no Bakelite or Catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 13.5 x 8 x 8 inch / 343 x 203 x 203 mm

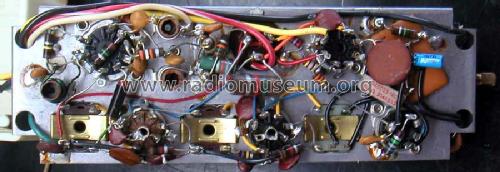

Notes The tubes in this radio were made in Japan with dual markings. The other set of marks is: 19EA8, HF93, HF93, HBC91, HL92. A silicon rectifier powers the radio. Fixed tuned FM radio with a built in crystal running at 35.333MHz, which is one third the LO frequency. The LO frequency is extracted with an LC tuned circuit at the plate of the LO oscillator triode in the 19EA8. For RF=95.3MHz, LO=106MHz, Crystal=35.333MHz. The only control is for volume and power. The crystal has it's fundamental frequency marked on the side and the receiving RF frequency marked on top. This radio, like it's AM band fixed tuned counterpart, was typically used as a promotional item given to advertisers for display at point of sale. The speaker in this version faces upward inside the base, and radiates through slots. The plastic side cover with one of the metal grilles slides out easily for tube replacement. The other grille is AC-grounded to the radio for shielding, and may give a harmless tingle when touched. A 28" (71cm) AC coupled antenna wire was found coiled in the 8" diameter base. Reception is improved by stretching antenna wire outside base.
Net weight (2.2 lb = 1 kg) 4 lb (4 lb 0 oz) / 1.816 kg
Source of data -- Collector info (Sammler)

Model page created by Joe Sousa. See "Data change" for further contributors.



All listed radios etc. from Point of Purchase Displays, - see also Coca-Cola
Here you find 8 models, 8 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
