- Country
- France
- Manufacturer / Brand
- Poler (Les Fabrications Poler), Radio-Étoile; Paris
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100201
mes archives photos
mes archives photos
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

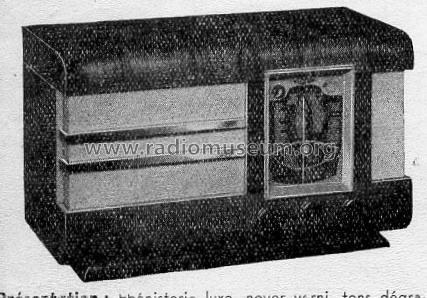

- Model: RE6 - Poler Les Fabrications Poler,
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 510 x 310 x 240 mm / 20.1 x 12.2 x 9.4 inch
- Notes
-
3 gammes d'ondes : OC de 19 à 52 m, PO de 200 à 550 m, GO de 1200 à 2000 m. Anti-fading agissant sur lampes EK2 en PO-GO et 6K7 sur les trois gammes. Réglage de tonalité. Lampes cadran : 2 x 6.3 V / 0.3 A.
Ébénisterie noyer verni, tons dégradés, décor métal.
- Price in first year of sale
- 1,850.00 FRF
- Circuit diagram reference
- La Documentation du Revendeur - Radio
- Mentioned in
- -- Original prospect or advert (Gamme 1939)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
