Dakota Golden M Series 7011-01 Ch= TS537 Maple Finish, 10 Channel TT1 Type Tuner
Pope Electronics Pty Ltd Sydney
- Country
- Australia
- Manufacturer / Brand
- Pope Electronics Pty Ltd Sydney
- Year
- 1960–1962
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 291819
Mingay's Price Service, 8/60 to 8/61.
- Number of Tubes
- 15
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 313750/368750 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dakota Golden M Series 7011-01 Ch= TS537 [Maple Finish, 10 Channel TT1 Type Tuner] - Pope Electronics Pty Ltd
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 28.425 x 33.065 x 14.875 inch / 722 x 840 x 378 mm
- Notes
-

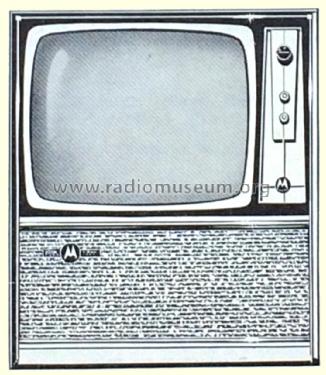

Pope Motorola "Dakota" 7011 Series
A 23″ mobile console utilising 14 valves plus 23″ CRT, five germanium diodes and two silicon power rectifiers. The power circuit is protected against anti-surge voltages by a thermistor. Also has two circuit breakers (500 mA for HT supply, 1.5 amps for mains input), and a manual rotary mains selector 200/250 volts. Tuner is equipped to receive all 10 channels, and has gold-plated tuner-contacts and premium rated valves. Both vision and sound IF strips are etched boards designed for quick removal so that factory warranted replacements may be easily substituted. All Golden M models have front sound and front controls for easy operation. (MINGAY'S PRICE SERVICE)
- Price in first year of sale
- 208.95 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1960 to Feb 1962.)
- Literature/Schematics (1)
- - - Manufacturers Literature (Pope Motorola Series 537 Field Service Bulletin.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol.1, 1962 & Vol. 2, 1967, Page P33.)
- Literature/Schematics (3)
- Teletronics Service Data Supplement No. 24, July 1965.
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
