McLaughlin's Single-Dial Superheterodyne

Popular Radio, Inc.; New York, NY

Data
Forum
Pictures
Collections

  • Year
  • 1925
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 361961

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 90, 6 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: McLaughlin's Single-Dial Superheterodyne - Popular Radio, Inc.; New York,
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Notes

  • James Leo McLaughlin's Single-Dial Superheterodyne (October 1925, Popular Radio)

    James Leo McLaughlin was a pioneering radio designer whose single-dial superheterodyne receiver, featured in the October 1925 issue of Popular Radio, marked a leap in radio technology. The superheterodyne principle—originally developed by Edwin Armstrong—had already transformed radio reception, but early designs were complex with multiple tuning controls. McLaughlin’s design solved this by introducing a true single-dial control, making high-performance radio accessible to average users.

    Circuit Description and Technical Features
    Simplicity and Accessibility:
    McLaughlin’s superheterodyne was called “the most advanced of all the single-control developments” of its time. It was an eight-tube set, operable from a single dial “as easily and satisfactorily as the simplest crystal receiver.” The receiver could be assembled by anyone, even beginners, using only standard, widely available parts.

    Efficiency:
    A key feature was its low power draw—only about 10 milliamperes of total plate current—ensuring long “B” battery life and economical operation.

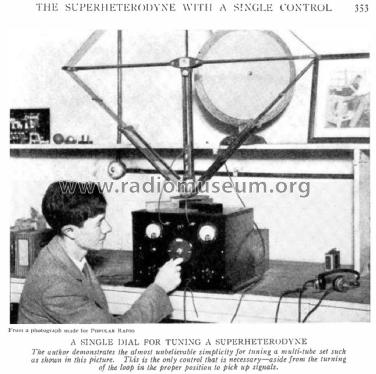

    Single-Dial Tuning Mechanism:
    The innovation lay in the tuning: two straight-line frequency variable condensers (one across the loop, one across the oscillator) were matched. Hence, the frequency difference between the oscillator and the signal stayed fixed, essential for superheterodyne operation. A small midget variable condenser shunted across the oscillator condenser allowed fine adjustment. Once set, the two main condensers operated together, enabling true single-dial control.

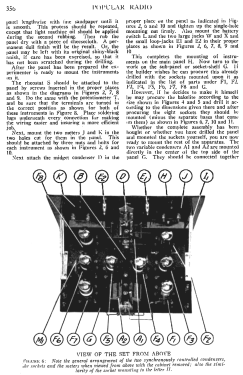

    Component Arrangement:
    Instead of the usual row of eight tubes, McLaughlin arranged them in an exaggerated “H” shape for compactness and better circuit isolation:

    • Oscillator tube: Upper left of “H”
    • First detector: Lower left
    • Three RF tubes + second detector: Horizontal bar
    • Two audio-frequency stages: Right vertical
    • This layout allowed short, direct connections, reducing feedback and making the set more compact and visually appealing.

    Intermediate Frequency and Transformers:
    The intermediate gang-transformer (“super-multiformer”) was a high-wave RF unit, chosen for its ease of integration and optimal intermediate frequency operation. All transformers, coils, and fixed condensers were compactly mounted under the sub-panel.

    Performance:
    The receiver was highly selective, delivered excellent audio, and could operate over a range exceeding 3,500 miles—covering the entire broadcast band. Despite its compact size, there was “no operating disadvantage at all,” and the set was praised for both performance and appearance.

    Legacy
    McLaughlin’s single-dial superheterodyne became a milestone in radio design, proving advanced superheterodyne technology could be simple, efficient, and accessible, and paving the way for mass adoption of user-friendly radios.

    See 7-tube ERLA version imported to the UK.

  • Mentioned in
  • -- Original prospect or advert (Popular Radio Oct 1925, Pages 350 - 363..)
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
