• Country
• United States of America (USA)

• Manufacturer / Brand
• Porto-Server (-Products) Inc.; Chicago

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 52204

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 26 watts, 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Smokerette SR-600 Ch= Series 9040-A - Porto-Server -Products Inc.;

• Shape
• Design Radio or Novelty / Gadget - fancy or unusual shape.

• Dimensions (WHD)
• 21.5 x 9 x 12.5 inch / 546 x 229 x 318 mm

• Notes
• The Smokerette SR-600 with chassis series 9040-A has a built in loop antenna. It is a combination radio and smoke set for table or chairside use. Stewart-Warner superhet in jet mahogany plastic cabinet. This smoker set includes two humidors for cigars and tobacco; a double humidor for cigarettes; a 4-pipe rack, and jumbo ash tray. Rider's volume 17 shows only this model for Porto-Products - page 17-1 and 17-2. The Smokerette radio is a chassis of Stewart-Warner in a mahogany plastic cabinet designed by Barnes & Reinecke.

  See also earlier products from the then called Porto-Server Inc. in Rider's 15-1 to 15-4 and later from Porto-Products Inc. on pages 18-1 and 18-2 with not much difference. See the older PB-520 here. It is a combination bar and radio.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 17 = 1948 and before

• Mentioned in

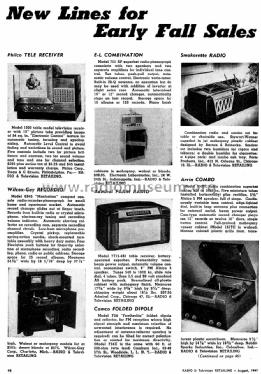

• Radio Retailing (Radio & Television R.) (August 1947 page 44.)
